HYD 5/6/8/10/15/20KTL-3PH USER MANUAL
79
LEDs
State
Colour
State
On-grid
Green
Normal
Green (flashing)
Standby
Off-grid
Green
Normal
Green (flashing)
Standby
Alarm
Red
Error

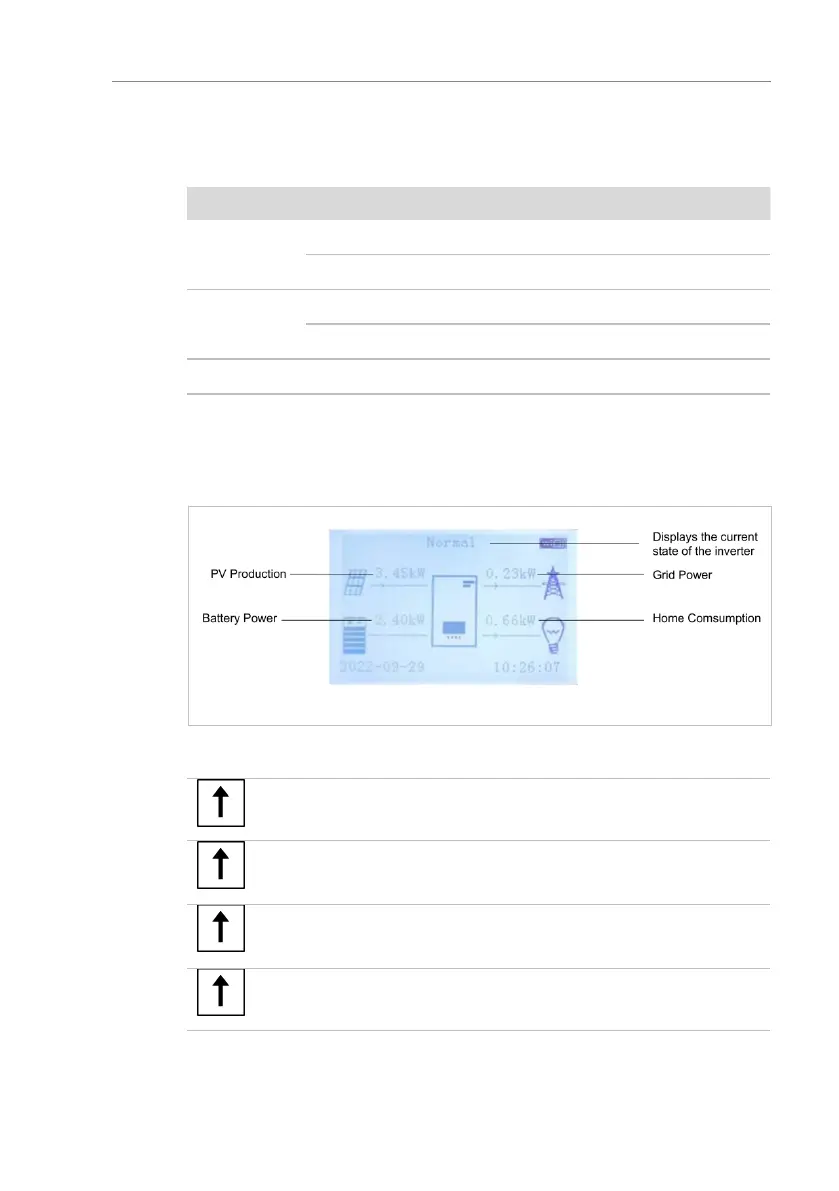

7.2 Standard display
The screen shows all relevant information of the inverter:
Figure. 6-2 LCD display
Press Up button, to show PV Information like
voltage, power and frequency
Press Up button again to show Grid Output
Information like voltage, power and frequency
Press Up button again to show Grid Information
such as power and IMPORT PF
Press Up button again to show Load Information
like Load Power
