HYD 5/6/8/10/15/20KTL-3PH USER MANUAL

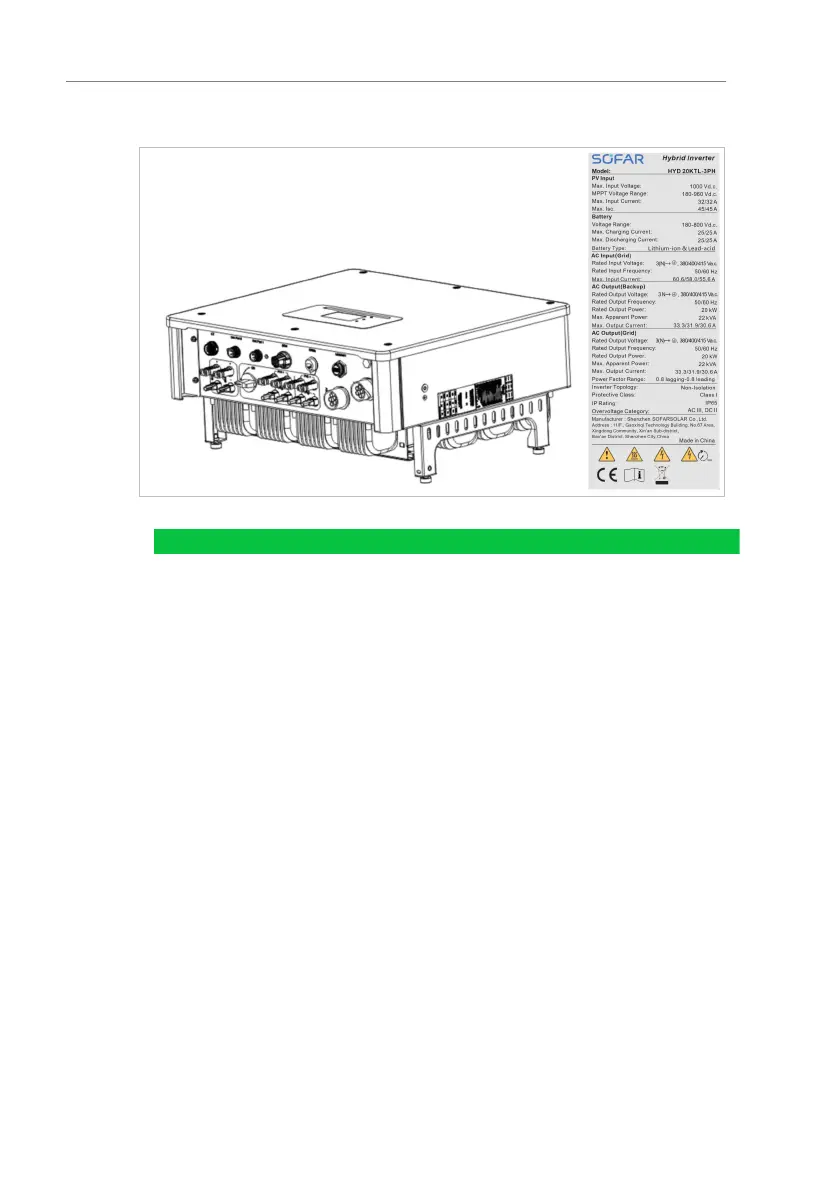

Figure. 3-3 HYD 5/6/8/10/15/20KTL-3PH appearance and label
3.4 Functional features
The DC output generated by the PV generator can be used for
both grid feed-in and battery charging.
The battery can supply the energy to the grid or the consumer.
The emergency current supply mode (EPS) can provide
inductive loads such as air conditioning systems or refrigerators
with an automatic switchover time of less than 10 milliseconds,
and a temporary overload of up to 10% is possible.
3.4.1 Functions
1. Two MPP trackers with 1.5-fold DC overload
2. Flexible switching between on-grid operation and energy
storage operation
3. Maximum efficiency when charging and discharging the
battery (97.8%)
4. Up to 2 battery strings with a combined maximum charging
and discharging current of 50 A
The picture is only for reference,please make the
object as the standard.
