HYD 5/6/8/10/15/20KTL-3PH USER MANUAL
67
Relay status: Closing is 1, opening is 0
Table. 5-18 Logic interface description(b)
L1
L2
L3
L4
Active power
Cos (φ)
1
0
0
0
0%
1
0
1
0
0
30%
1
0
0
1
0
60%
1
0
0
0
1
100%
1
Logic interface for EN50549-1:2019
The active power output can be ended within five seconds
following a command to the input interface.

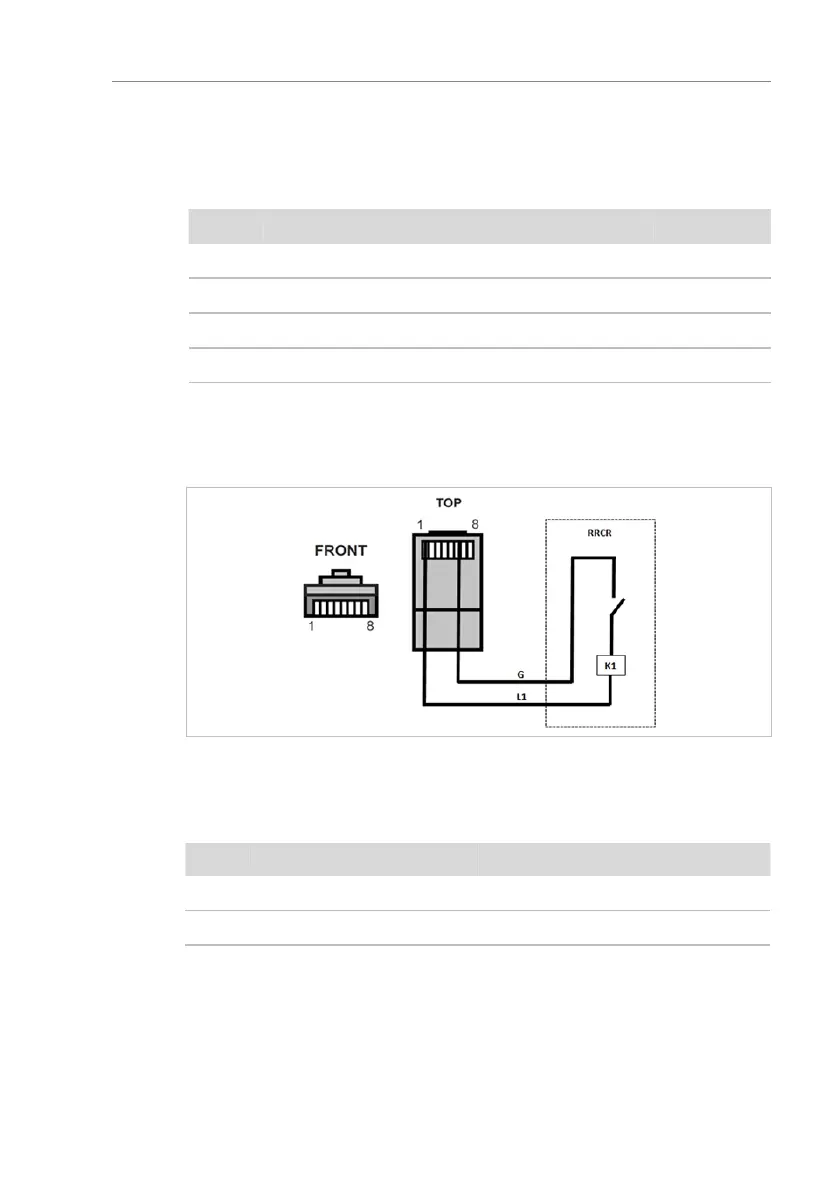

Figure. 5-38 Logic interface(b)
Functional description of the terminal
Table. 5-19 Logic interface description(c)
Pin
Name
Inverter
Radio ripple control receiver
1
L1
Relay 1 input
K1 - output relay 1
6
G
Ground
Relay, common ground
The inverter is preconfigured on the following power levels.
Relay status: Closing is 1, opening is 0
