HYD 5/6/8/10/15/20KTL-3PH USER MANUAL
L2 is 2 to 3 mm longer than L1
3. Insert the positive and negative DC cables into the
corresponding cable glands.
4. Crimp the DC cables. The crimped cable must be able to
withstand a tractive force of 400 N·m.

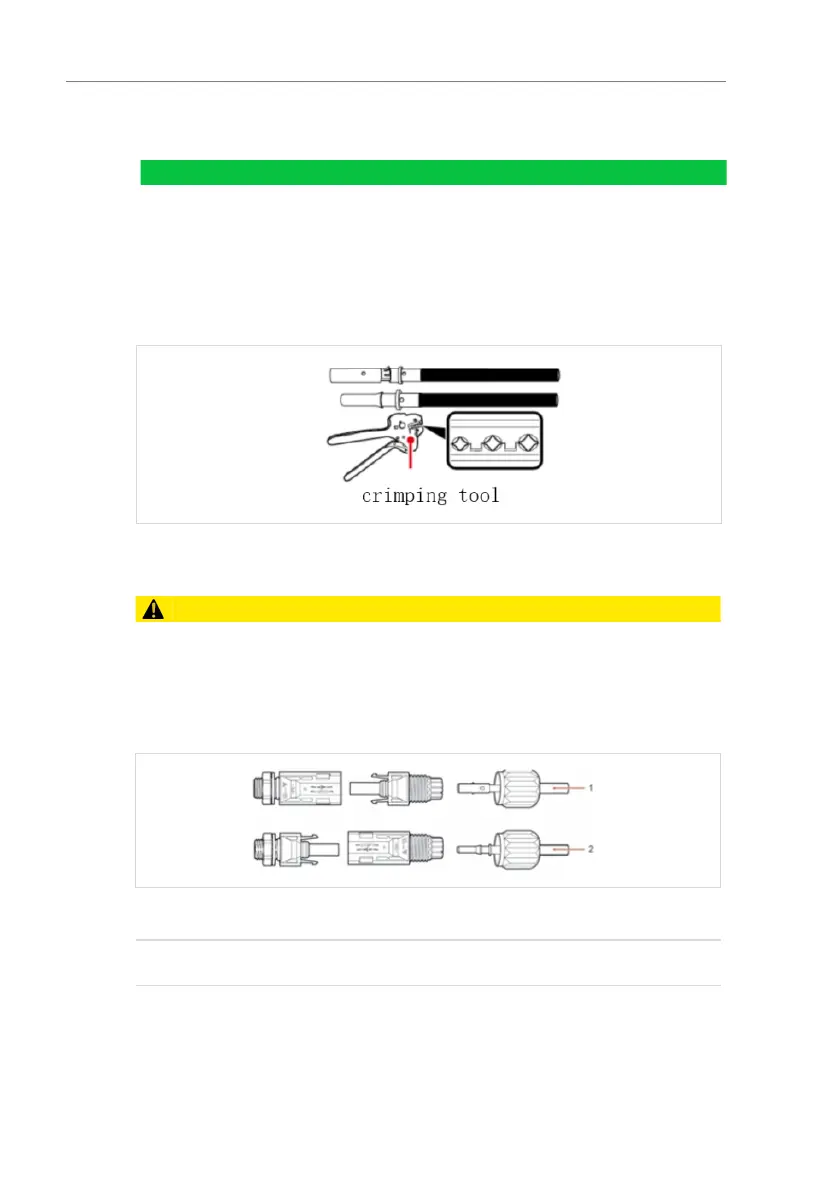

Figure. 5-10 Connecting PV(b)
Danger of reverse polarity!
Ensure that the polarity is correct before plugging
into the DC connections!
5. Insert the crimped DC cables into the corresponding
connector housing until you hear a “clicking” sound.
Figure. 5-11 Connecting PV(c)
