Sofar HYD6000-ES - Page 15

15 / 47

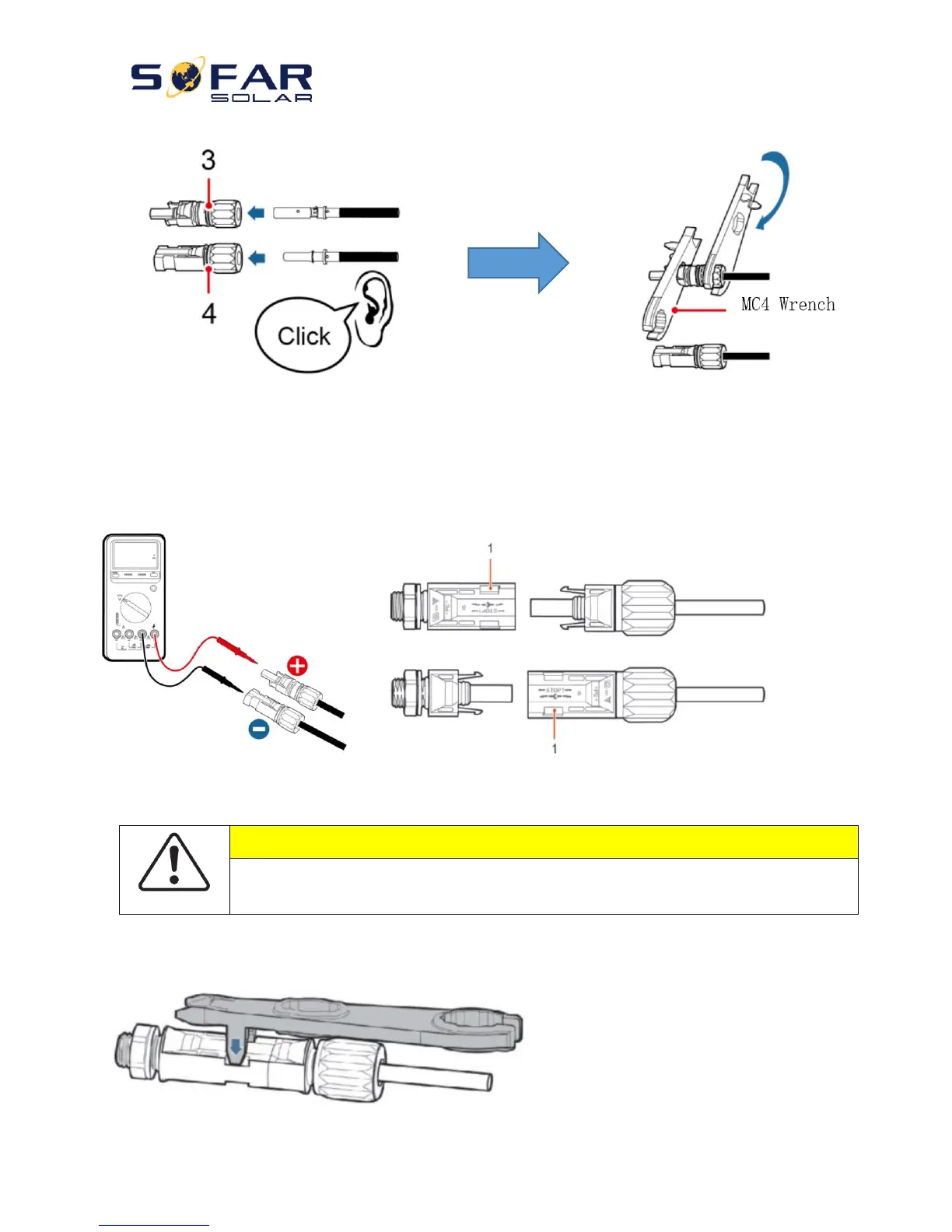

Step 2 Insert crimped PV positive and negative power cables into corresponding PV connectors
3. Positive connector 4. Negative connector
Fig. 8 prepare PV positive and negative connectors
Step 3 Make sure the DC voltage of each PV string is less than 600V DC and polarities of PV power cables are correct.
Insert the positive and negative connectors into HYD-ES inverter until you hear a "click" sound, as shown in Fig. 9.
1. Bayonet
Fig. 9 Connect PV connectors
CAUTION
Before removing the PV positive and negative connectors, ensure that the DC
SWITCH is OFF.
Follow-up Procedure
Use a MC4 wrench to disconnect PV connectors, as shown in Fig. 10.
Fig. 10 Disconnect PV connectors
