Sofirn SC21 Pro - Simple UI Operation; Simple UI Core Functions

means ten clicks but hold the final press.

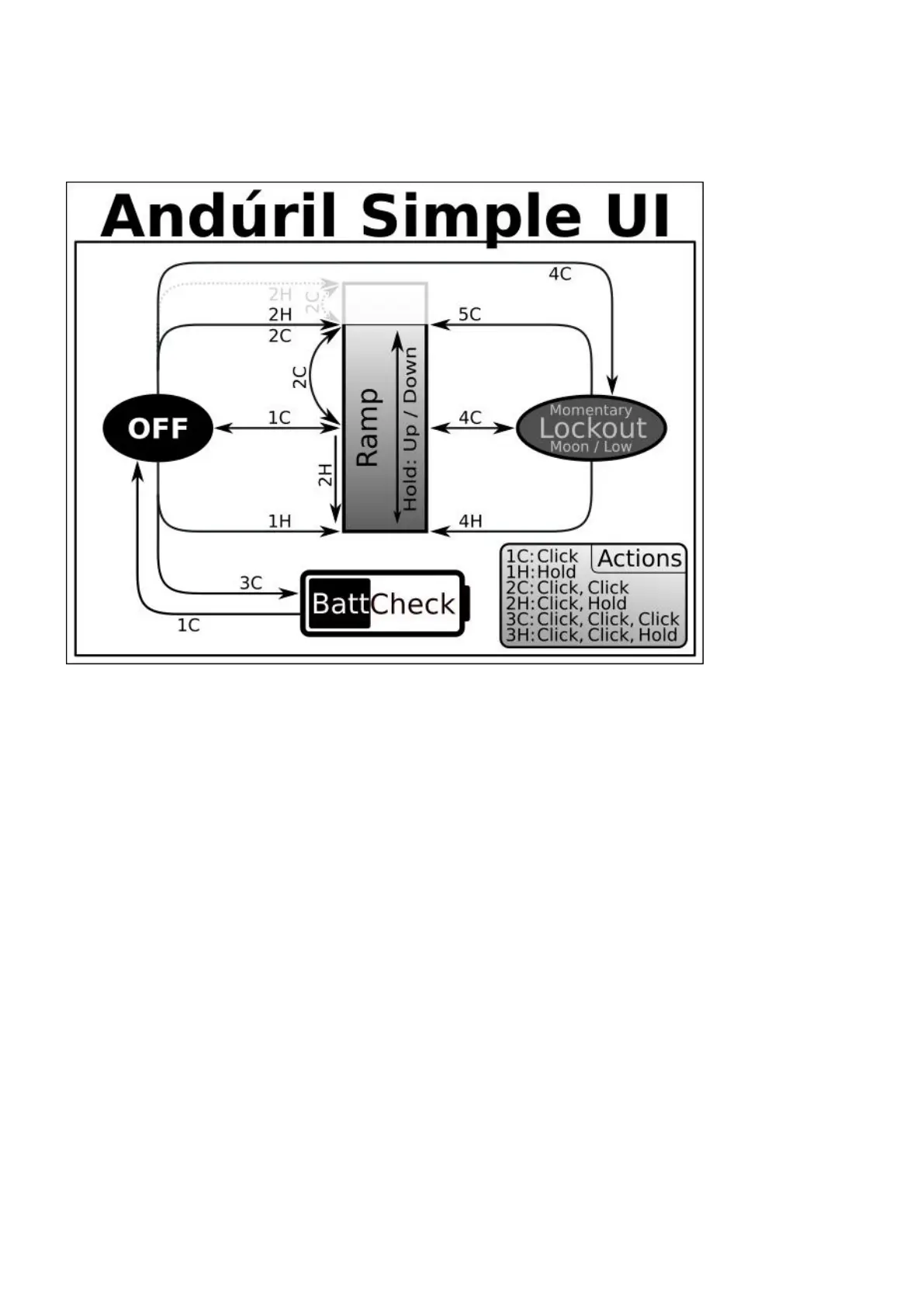

Simple UI Diagram Not everything is covered in the diagram, please read the text.
Simple UI
By default, the light uses a simple UI. This is useful if you lend the light to someone else, or if you just
don't want to bother with any crazy disco modes.
Simple UI has all the basic functions needed to work as a flashlight, but the minimum and
maximum brightness are limited to make it safer, and any complex or advanced functions are blocked.
Functions available in Simple UI include:
- 1C: On / off
- 1H: Ramp up (or down, if button was released less than a second ago)
- 2H: If light is on : ramp down
If light is off: momentary high mode
- 2C: Double click to go to / from highest safe level
- 3C: Toggle between SMOOTH RAMPING and STEPPED RAMPING (while light is on)
- 4C: Lockout mode.
