RM2L-NH Setup
13

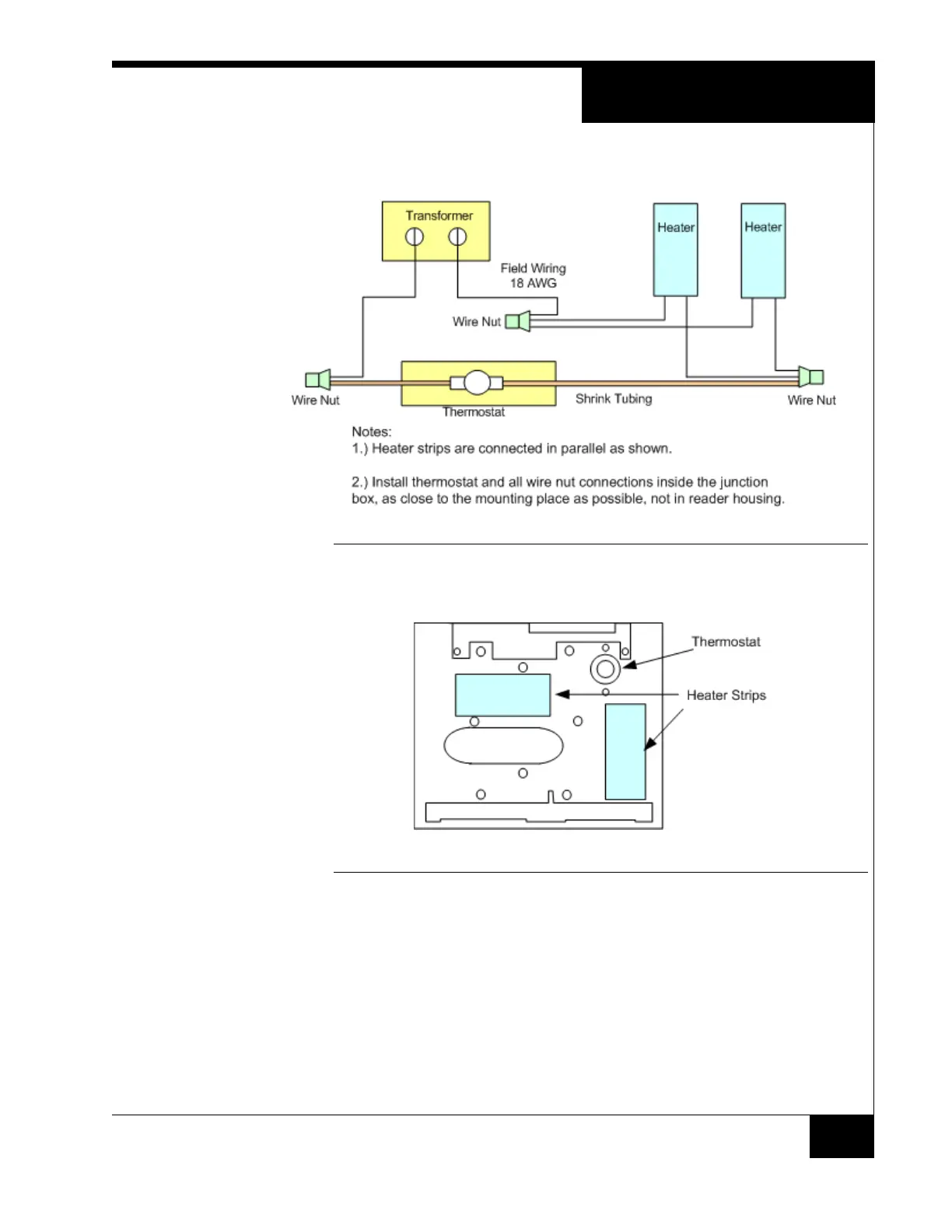

Figure 9 shows how to wire the RM heater kit.
FIGURE 9. RM Heater Kit Wiring
Figure 10 shows the location of the heater strips and thermostat on the RM mount plate.
.
FIGURE 10. RM Installation
Applying Heater Strips
To apply heater strips:
1. Clean the attachment surface of the RM mount plate with a solvent such as alcohol
(use all required precautions when handling solvents).
2. Carefully remove the release film from the adhesive.
3. Locate the heater on the clean surface of the RM mount plate exactly as shown in
Figure 10
