8
DRAFT
Tyco CONFIDENTIAL

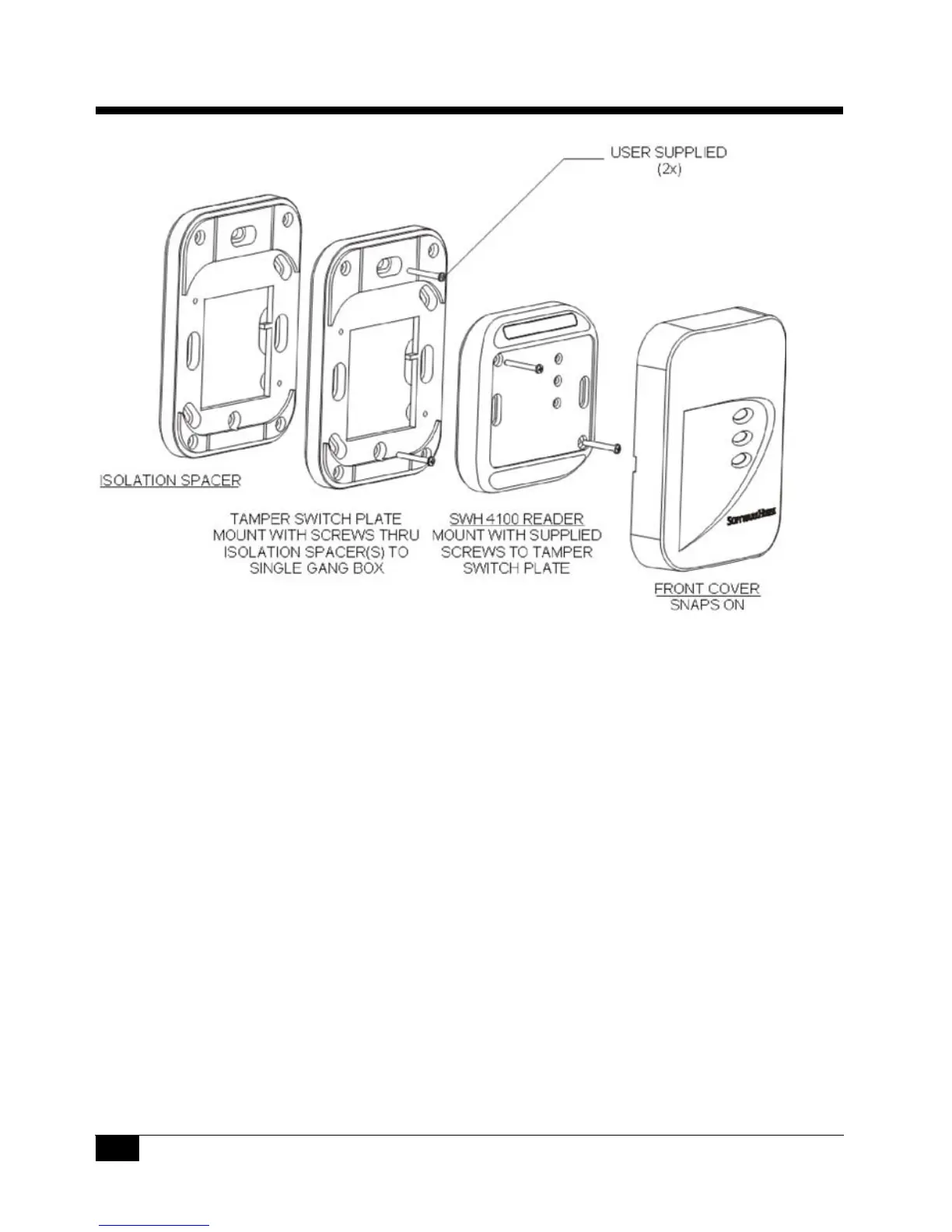

FIGURE 2. Mounting Assembly
(including 1 optional isolation spacer)
Please note that Figure 2 shows the SWH-4100 reader and cover plate.
Although the SWH-4200 keypad reader and front cover plate differ, the
mounting assembly is the same as the SWH-4100.
