MOUNTING
Mount the single-gang backplate (with tamper magnet installed) onto the
wall.

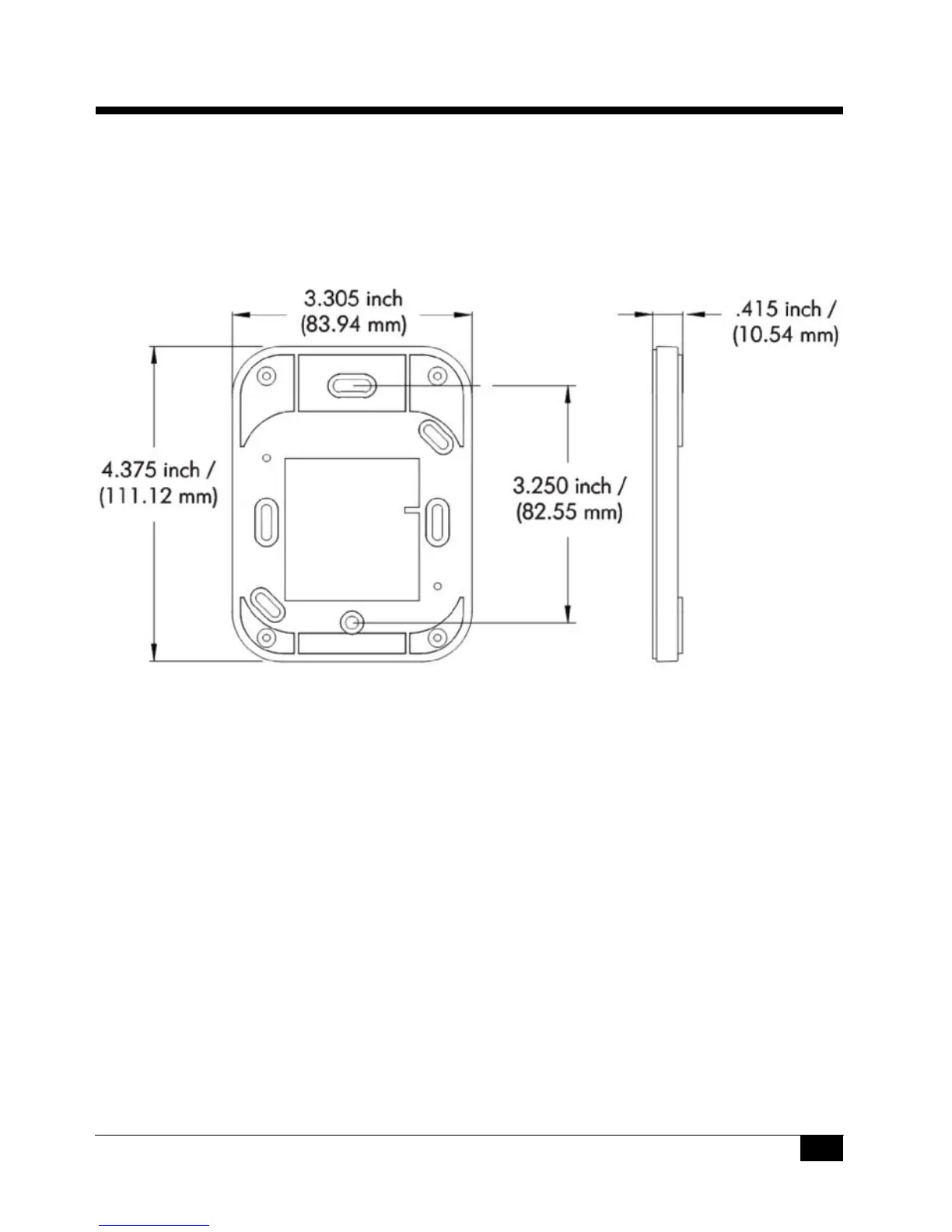

FIGURE 1. Model SWH-4x00 Reader Backplate
(includes tamper switch magnet)
NOTE
Mounting holes fit standard U.S. single-width electrical box and
standard European (EMEA) electrical box hole patterns.
Mount the reader module directly to the backplate and then snap the front
cover in place as indicated in Figure 2.
