DRAFT

Tyco CONFIDENTIAL

MOUNTING

Mount the single-gang backplate (with tamper magnet installed) onto the

wall.

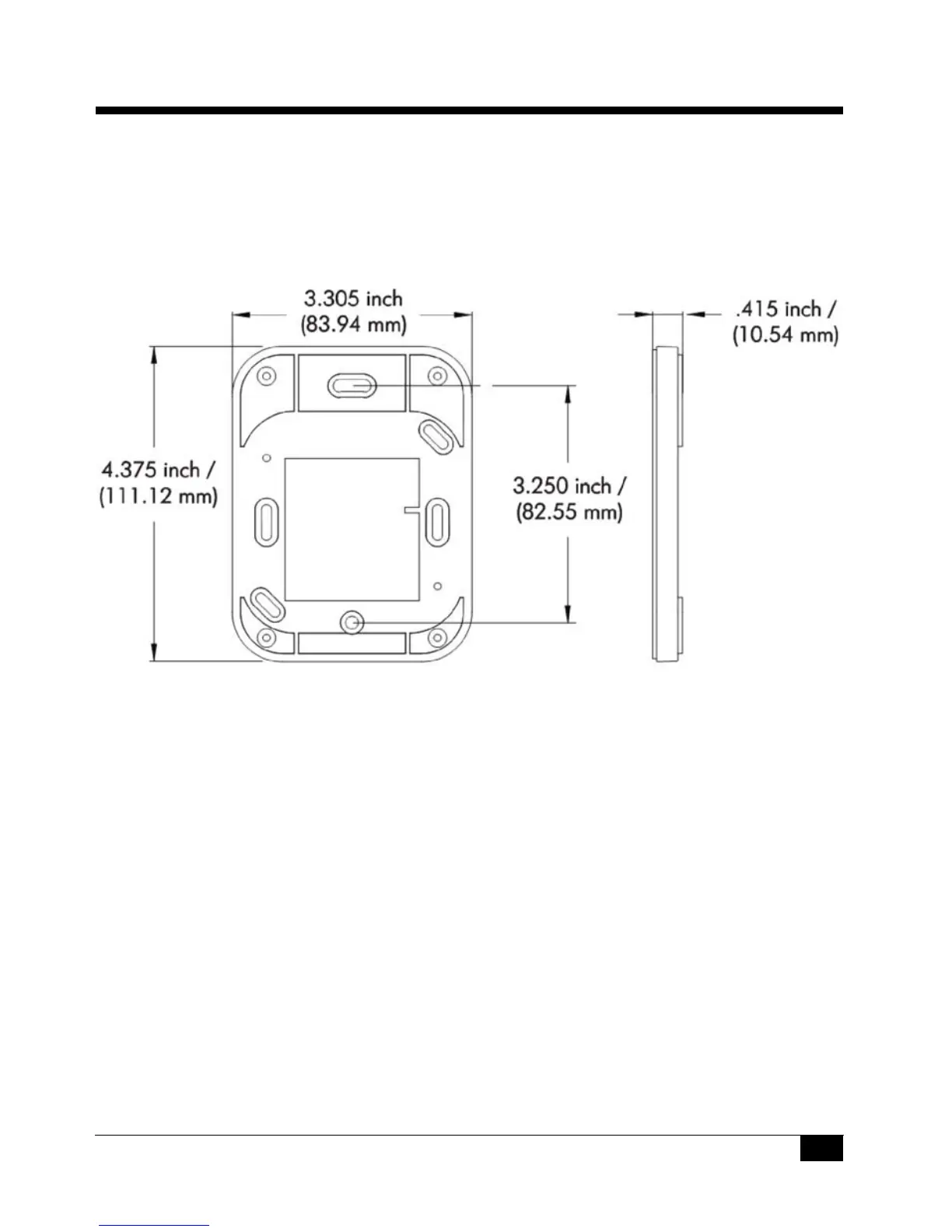

FIGURE 1. Model SWH-4x00 Reader Backplate

(includes tamper switch magnet)

NOTE

Mounting holes fit standard U.S. single-width electrical box and

standard European (EMEA) electrical box hole patterns.

Mount the reader module directly to the backplate and then snap the front

cover in place as indicated in Figure 2.
