Installation
4.2 Connection
The PAC module connects to its external equipment and operator position
workstation in the following manner:

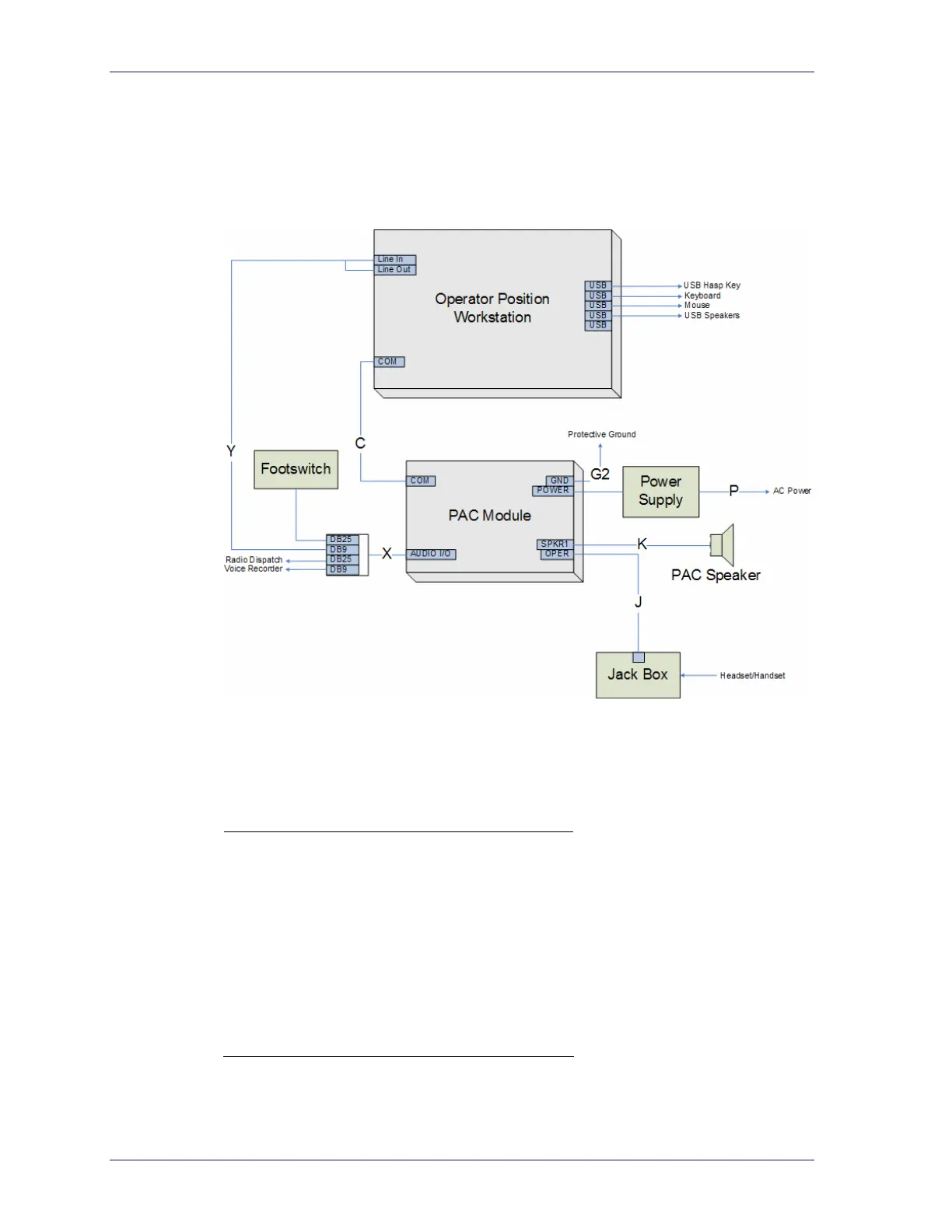

Figure 4: Connections
The following cables are used for interconnections:
Name Label
AC Power Cord P
Grounding Cable G2
Jack Box Cable J
RS232 Cable C
Speaker Cable K
Sound Card Cable Y
Radio Bypass Cable X
Table 7: Cable List
