SolarEdge SE3K - Page 184

SolarEdge SE3K
288 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
A
1
2
COMM 2
4 N*m
5
3
SW1
6
G
A +
B -
SW1
SW1
SW1
7
RS485-1
G
A+
B-
G
A+
B-
G
A+
B-
CAT6, tretrådig, skärmad, partvinnad (0,2 - 1 mm2)
G
A +
B -
14 MAN-01-00784-1.3

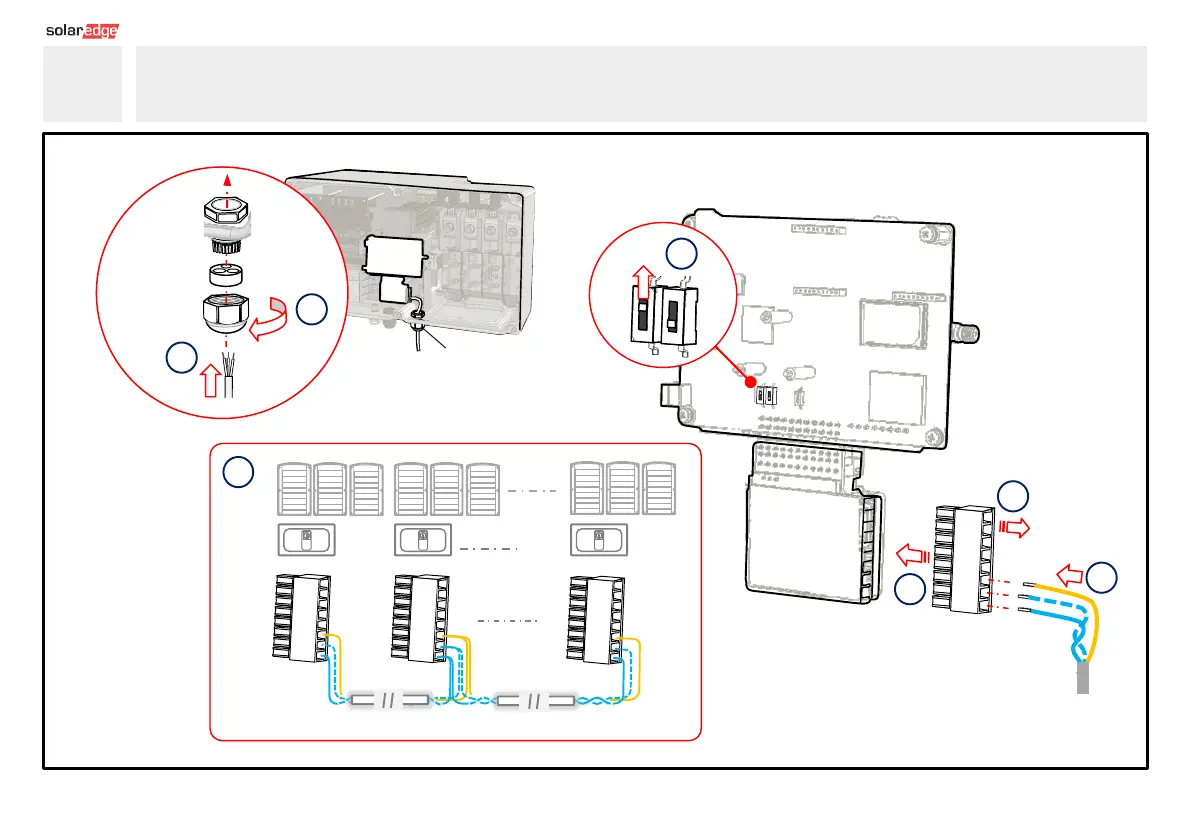

RS485-anslutning av flera växelriktare
