SolarEdge SE7k User Manual



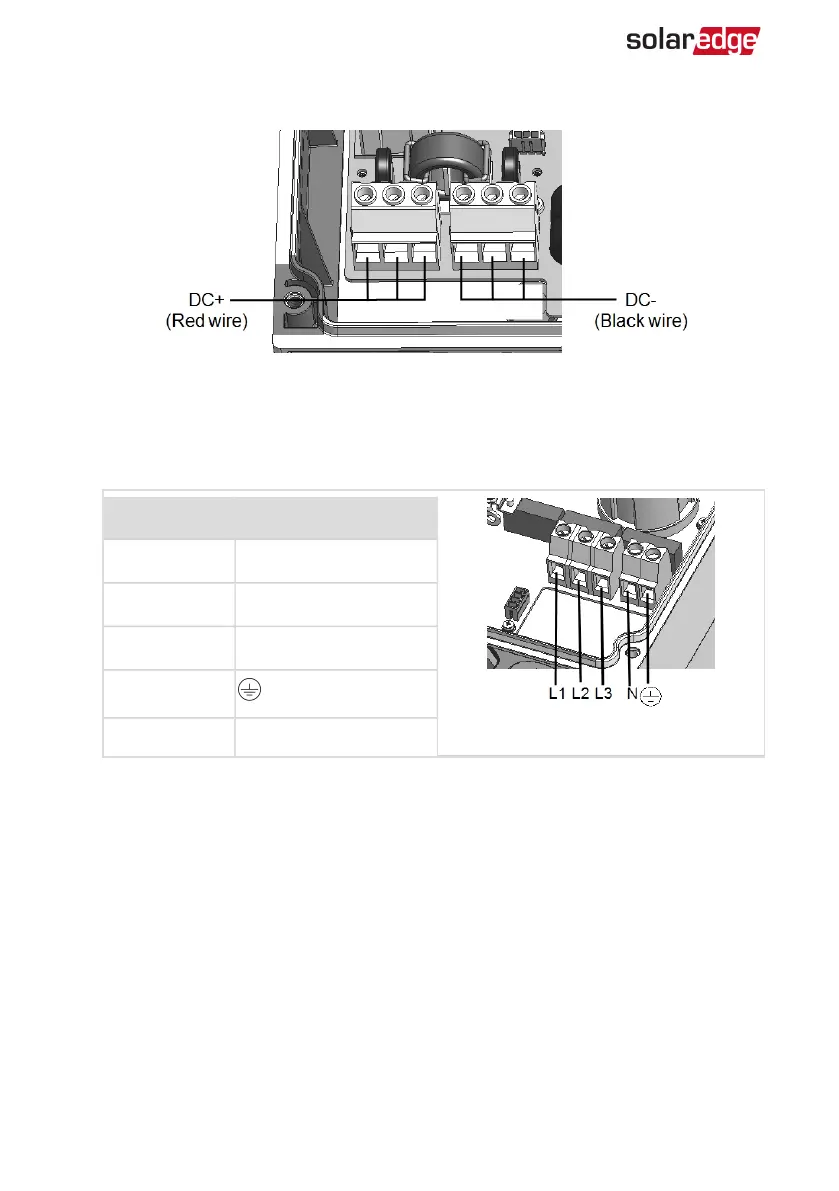

Figure 41: DC terminals
3.
Connect the AC wires according to the labels on the ACterminal blocks, as follows:


Wire type Connect to terminal
Figure 42: AC terminals
Line 1 L1
Line 2 L2
Line 3 L3
PE (grounding)
Neutral N
4. Tighten the screws of each terminal with a torque of 1.2-1.5 N*m / 0.88-1.1 lb.*ft.
5. Verify that there are no unconnected wires at the output of the DC Safety Unit and
that any unused terminal screws are tightened.
6. Connect the DC and AC wires to the DC Safety Unit. Refer to Connecting the AC and
the Strings to the Inverter on page 31.
7. Ensure proper cable entry sealing; inspect the entire cable run and use standard
sealants to avoid water penetration.
-Three Phase System Installation Guide MAN-01-00057-4.1
96 Replacing the DC Safety Unit

SolarEdge SE7k Specifications

General

Manufacturer	SolarEdge
Model	SE7k
Category	Inverter
Max. DC Power	9450 W
Max. AC Power Output	7000 W
Rated AC Power	7000 W
AC Frequency	50/60 Hz
Topology	Transformerless
Warranty	12 years
Communication Interfaces	RS485, Ethernet
Cooling	Convection
Operating Temperature Range	-25°C to 60°C
