* Seal the unused PV terminals with the terminal caps.
5
+
+
-
-
+
-
+
-
Battery Connection / Batterieanschluss / Branchement de la batterie / Conexión de
la batería / Ligação da bateria / Batterij-aansluiting / Collegamento della batteria /
Połączenie akumulatora / Připojení baterie / Batterianslutning / Conectare baterie
/
/
Batteritilslutning
/
/
Akuühendus / Akun
liitäntä / Priključak za bateriju / Akkumulátor bekötés / Akumuliatoriaus jungtis /
Akumulatora savienojums / Pripojenie batérie / Povezava baterije / Akü Bağlantısı /
Conexão da Bateria /

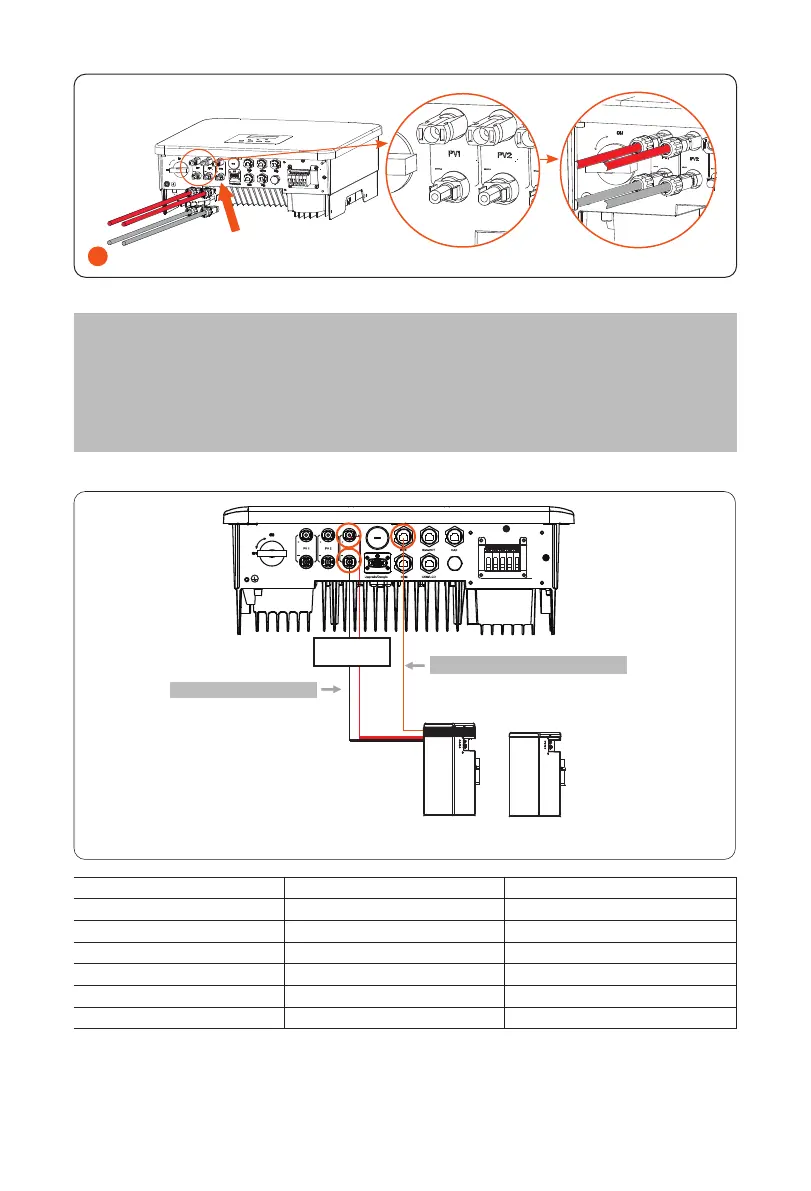

• Battery connection diagram
+
High voltage lithium battery
BMS
... ...
Non-polar
DC MCB
Power line connection
Communication line connection
-
* Whether to add Non-polar DC MCB depends on local safety regulations.
Battery Control Battery Modules
Battery & Quantity T-BAT 5.8 (1 PCS) HV11550 (0-2 PCS)
Battery & Quantity MC0600 (1 PCS) HV10230 (1-4 PCS)
Battery & Quantity TBMS-MCR0800 (1 PCS) TP-HR25 (2~8 PCS)
Battery & Quantity TBMS-MCR0800 (1 PCS) TP-HR36 (2~8 PCS)
Battery & Quantity TBMS-MCS0800 (1 PCS) TP-HS25 (2~8 PCS)
Battery & Quantity TBMS-MCS0800 (1 PCS) TP-HS36 (2~8 PCS)
* T58 battery has V1 and V2, V1 and V2 with the same number of inverters, the specific
collocation can refer to the relevant part of the battery manual.
