SolaX Power X1-Hybrid-7.5-D User Manual

X1-Hybrid G4 series is a high-quality inverter that can convert solar energy
into alternating current and store energy into batteries.
The inverter can be used to optimize self-consumption, stored in batteries
for future use or fed into the public grid. The way it works depends on
user preferences. It can provide emergency power during power outages.
2 Introduction
2.1 Basic Features
X1-Hybrid G4 series are designed to has four Off-grid wiring schemes,
customers can choose Off-grid compatible parts Load and Off-grid
compatible with all load use.
There are different ways of wiring in different countries, one is to
connect N line with PE line, the other is to separate the line from the
PE line wiring, see below;

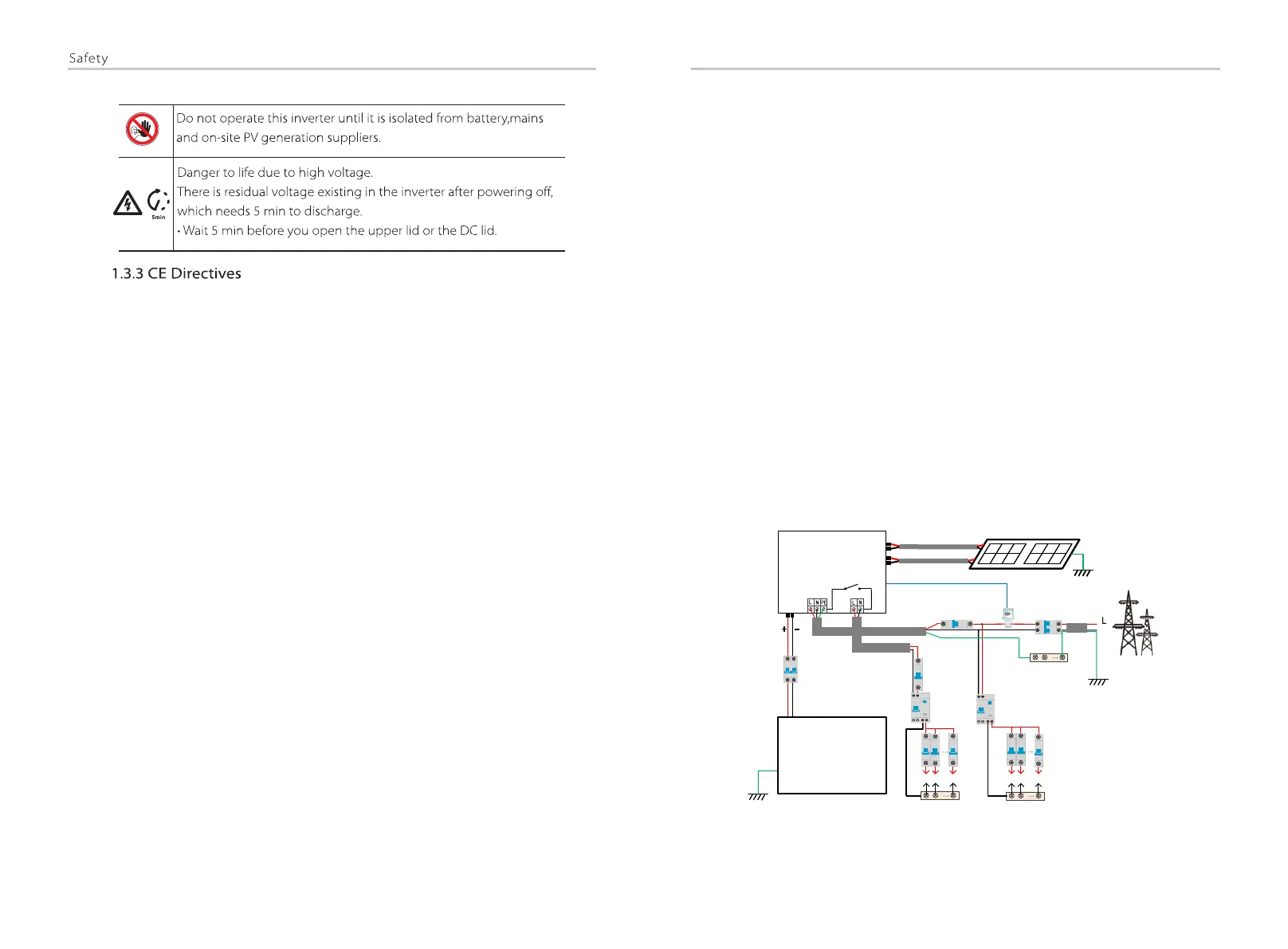

2.2 System Diagram
10
11
Diagram A: Neutral line and PE line are separated from each other,
and the common load is connected to the off-grid port;
(For most countries)
Introduction
For installation in photovoltaic module system, it is necessary to
make sure that the whole system complies with the requirements of
EC(2014/35/EU,2014/30/EU, etc.) before starting the module (i.e. to
start the operation).The assembly shall be installed in accordance
with the statutory wiring rules .Install and configure the system in
accordance with safety rules, including the use of specified wiring
methods .The installation of the system can only be done by
professional assemblers who are familiar with safety requirements
and EMC .The assembler shall ensure that the system complies with
the relevant national laws.
The individual subassembly of the system shall be interconnected by
means of the wiring methods outlined in national/international such as
the national electric code (NFPA) No.70 or VDE regulation 0107.
This chapter describes the requirements of the European low voltage
regulations, including safety instructions and system licensing
conditions, the user must comply with these regulations when
installing, operating, and maintaining the inverter , otherwise it will
cause personal injury or death, and the inverter will cause damage.
Please read the manual carefully when operating the inverter .If you do
not understand "danger", "warning", "caution" and the description in the
manual, please contact the manufacturer or service agent before installing
and operating the inverter.
Grid-connected inverter comply with low voltage directive (LVD)
2014/35/EU and Electromagnetic compatibility directive (EMC)
2014/30/EU.Detection of components is based on:
EN 62109-1:2010 ;
EN 62109-2:2011 ;
IEC 62109-1(ed.1) ;
IEC62109-2(ed.1)
EN 61000-6-3:2007+A:2011 ;
EN 61000-6-1:2007 ;
EN 61000-6-2:2005;
N
BAT
Battery
N-BAR for loads
N-BAR for off-grid loads
off-grid loads
Loads
X1-Hybrid G4
PV 1
PV 2
E-BAR
RCD
Breaker
Grid
Breaker
Grid
Off-grid
Main Breaker
Breaker
Breaker
CT
CT
Breaker
PE
RCD
