Solax X3 series User Manual

1.Prepare RJ45 connector and a communication cable.
2.Trip the insulation from the communication cable.
3.Let the communication cable pass though the waterproof plug, then insert
it into the RJ45 connector following the PIN definition rule.
4. Crimp the RJ45 connector with the crimping plier.
5.Insert the cable into the DRM port of the inverter, and tighten the
waterproof plug.

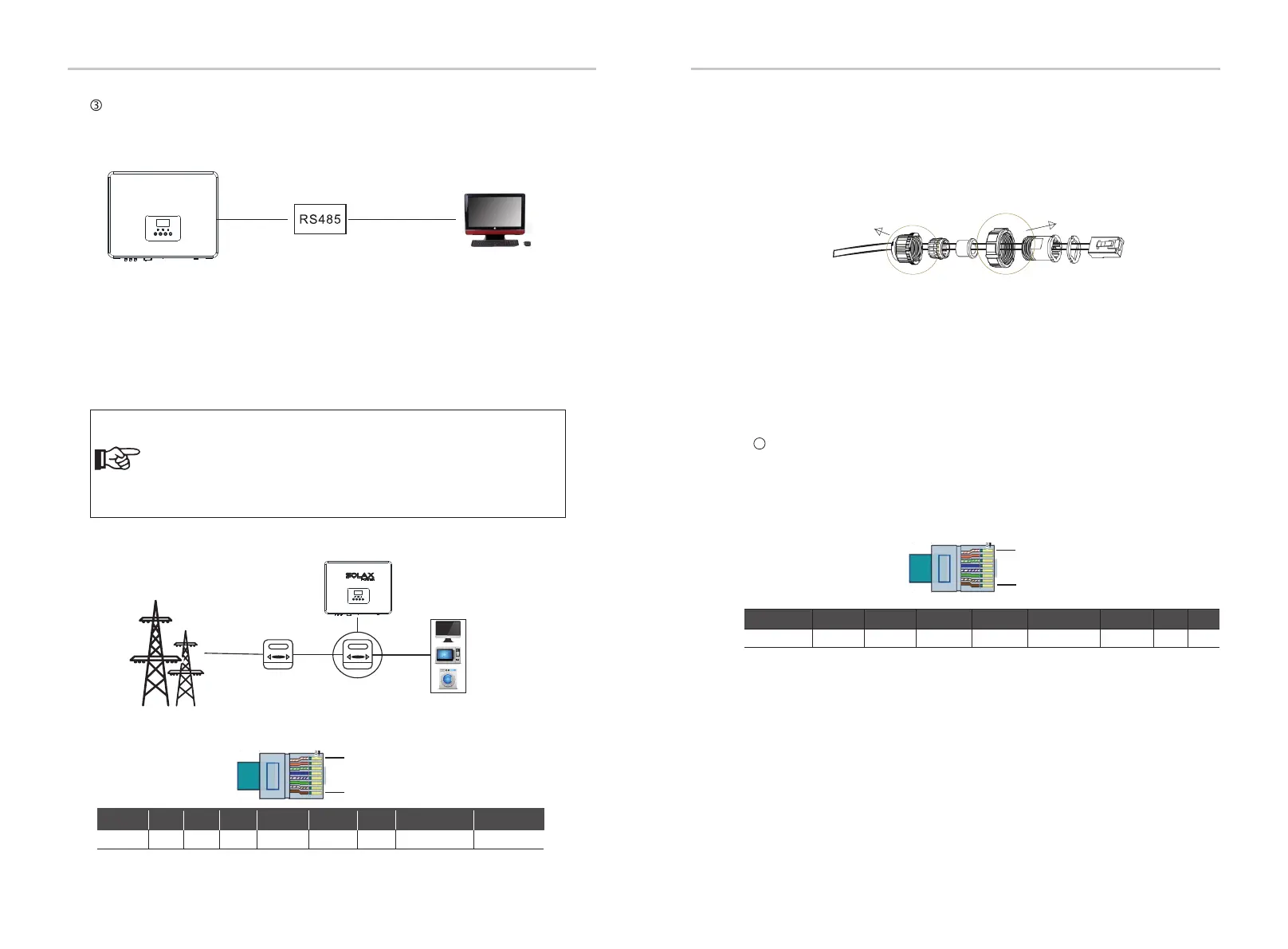

RS 485/Meter
This is a communication interface provided for engineer to adjust the inverter.
a. RS 485
b. Meter(optional)
1.Monitor the energy to grid and from grid throughout the whole day.
2.Achieve the export control function with a higher accuracy.
Please see the Quick Guide for three-Phase Meter Installation for details.
The PIN definitions of RS 485/Meter interface are as below.

1
8
PIN
Definition
1 2 3 4 5 6 7 8
X
485_A
METER 485_A
485_B
METER 485_B
XX X X
RS 485 Connection Steps:
Meter Connection Steps:
Electrical
grid
Electric meter,
bidirectional
three-phase
meter
Load
X3 series inverter
1. Prepare RJ45 connector and a communication cable.
2. Trip the insulation from the communication cable.
3. Let the communication cable pass though the waterproof connector with
RJ45, then insert it into the RJ45 connector following the PIN definition rule.
4. Crimp the RJ45 connector with the crimping plier.
5. Insert the cable into the RS 485/Meter port of the inverter, and tighten the
waterproof connector.
DRM is provided to support several demand response modes by giving control
signals as below.

1
8
Pin
Definition
1
2
3 4
5
6
7
8
DRM1/5 DRM2/6 DRM3/7 DRM4/8
+3.3V_COM
DRM0
GND
DRM
4
24
25
Installation Installation
A meter can communicate with the X3 series inverter through this interface,
then you can:
Connection Steps:
GND
Hand tighten. torque: 1. 2±0.1NmHand tighten. torque: 1. 5±0.1Nm
Note！
It is necessary to connect meter to inverter otherwise inverter will
shutdown with a “Meter fault” alert.
The smart meter must be authorized by Solax, any third party or
non-authorized meter may not match with the inverter.
Solax will not take the responsibility if the meter is unavailable.

Solax X3 series Specifications

General

Type	Hybrid Inverter
Protection Rating	IP65
Output Frequency	50 Hz / 60 Hz
Communication Interfaces	WiFi, Ethernet, RS485
Output Voltage	230V
Operating Temperature	-25°C to 60°C
