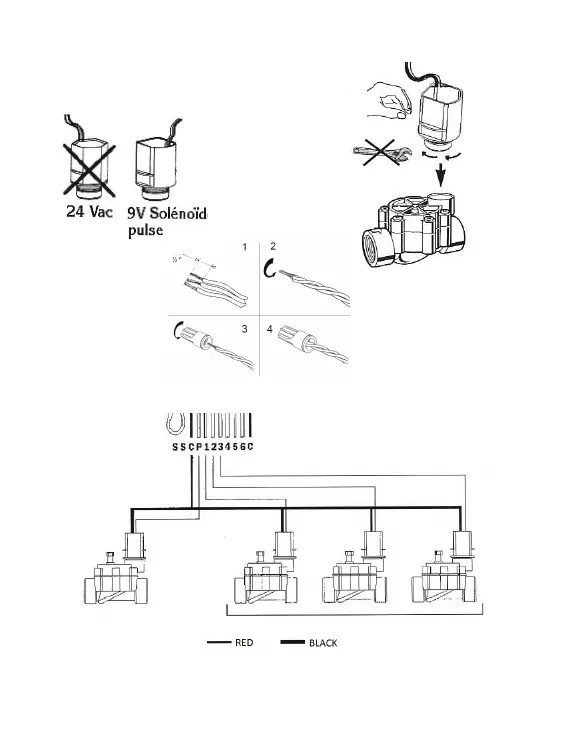

4- MOUNTING AND WIRING MODULE
Mount the unit on a plasc valve box.
Use 9V solenoid pulse valves.
WIRING SOLENOID
Note : No master valve with BL-IP 1 staon
P-17
