SSL UF8 User Guide
Get-Started

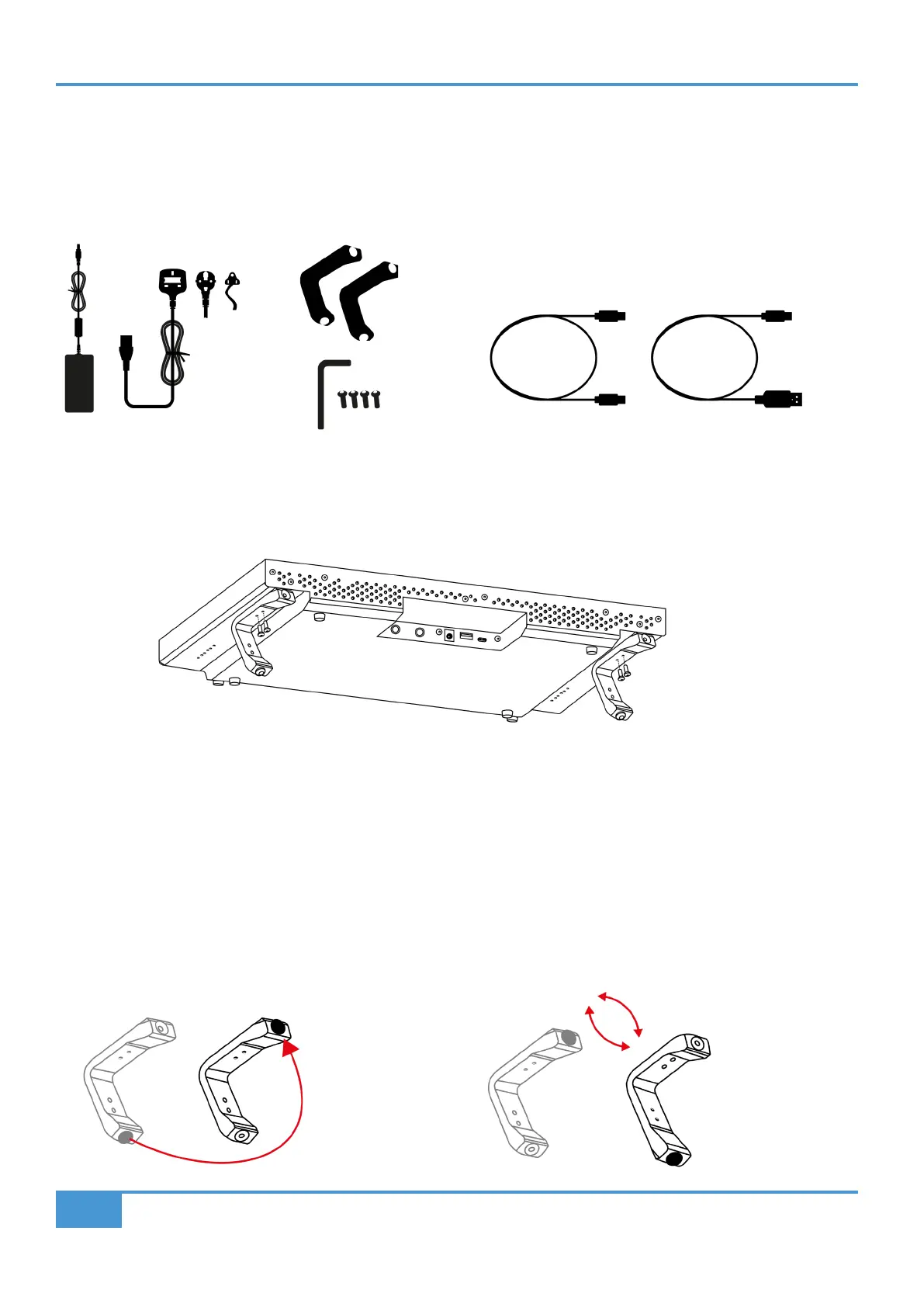

Unpacking
The unit has been carefully packed and inside the box you will find the following items in addition to your UF8 control surface:
Fitting The Stands (Optional)
UF8 has been designed to be used with or without the included screw-in stands, depending on your preference. Attaching the
included screw-in stands has the added benefit of angling the unit towards you. Three different fixing positions (the holes are
arranged in pairs) allow you to choose an angle that is best for your setup. Use 2 screws per stand. Please be careful not to over-
tighten to avoid stripping the screw threads. For those with a torque measuring device, tighten to 0.5 Nm.
Additional Elevation Angles
If you need a steeper angle of elevation, you can rotate the stands and fix them to the chassis using the shorter side. This gives
you three additional angle options to choose from.
1. Unscrew the rubber feet and move to the other end 2. Rotate the stands so that the short side fixes to the chassis
12 volts, 5 A Power Supply
and IEC Cable
1.5 m C to C USB Cable 1.5 m C to A USB Cable
2 x Stands
1 x Hex Key
4 x Screws
