D-EQ - Frequency & Range Selection
For each band of the D-EQ, 16 different frequency points can be chosen from, allowing control over which part of the frequency
spectrum you want to affect. The D-EQ also allows control over a parameter called RANGE for each band. The RANGE parameter
allows you to restrict the maximum amount of expansion or compression possible, by introducing gain-reduction (or expansion)
limiting on the control voltage for the VCA in the D-EQ.
Adjusting the Frequency
Press and hold on the band (LF or HF) you want to change. The moving-coil meters on the front panel will start pulsing/glowing.
The left-hand side meter is used to indicate the selected frequency. Pressing the HF FAST switch will move the frequency point
upwards, whilst pressing the LF FAST button will move it downwards. The left-hand side meter needle shows the current setting.
Press and hold the LF (or HF control if you're adjusting that band) or the MODE switch to exit.
Adjusting the Range
(Presuming you are have already entered the setup mode by pressing and holding the LF or HF control):
Pressing the HF FAST switch will increase the Range of the D-EQ, whilst pressing the LF FAST button will decrease it. The right-
hand side meter needle shows the current Range setting. Press and hold the LF (or HF control if you're adjusting that band) or
the MODE switch to exit.

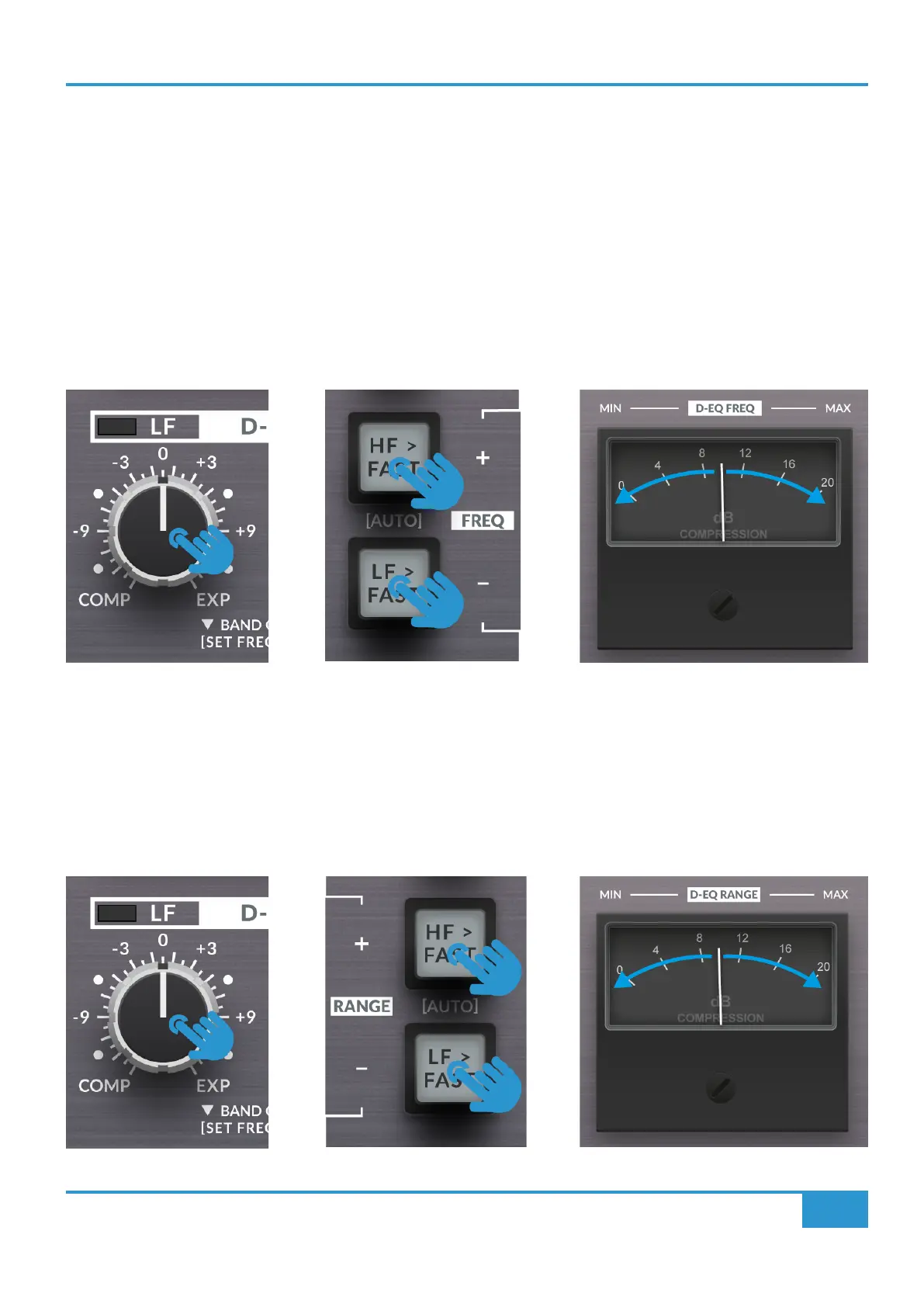

Press and hold desired band.
Use + or - keys to change
frequency.
Use + or - keys to change Range
setting.
The needle indicates the chosen frequency.
See next page for frequency points.
The needle indicates the chosen Range.
Press and hold desired band.
To Next Page
