Tutorial
18
THE BUS+ User Guide
Frequency Points

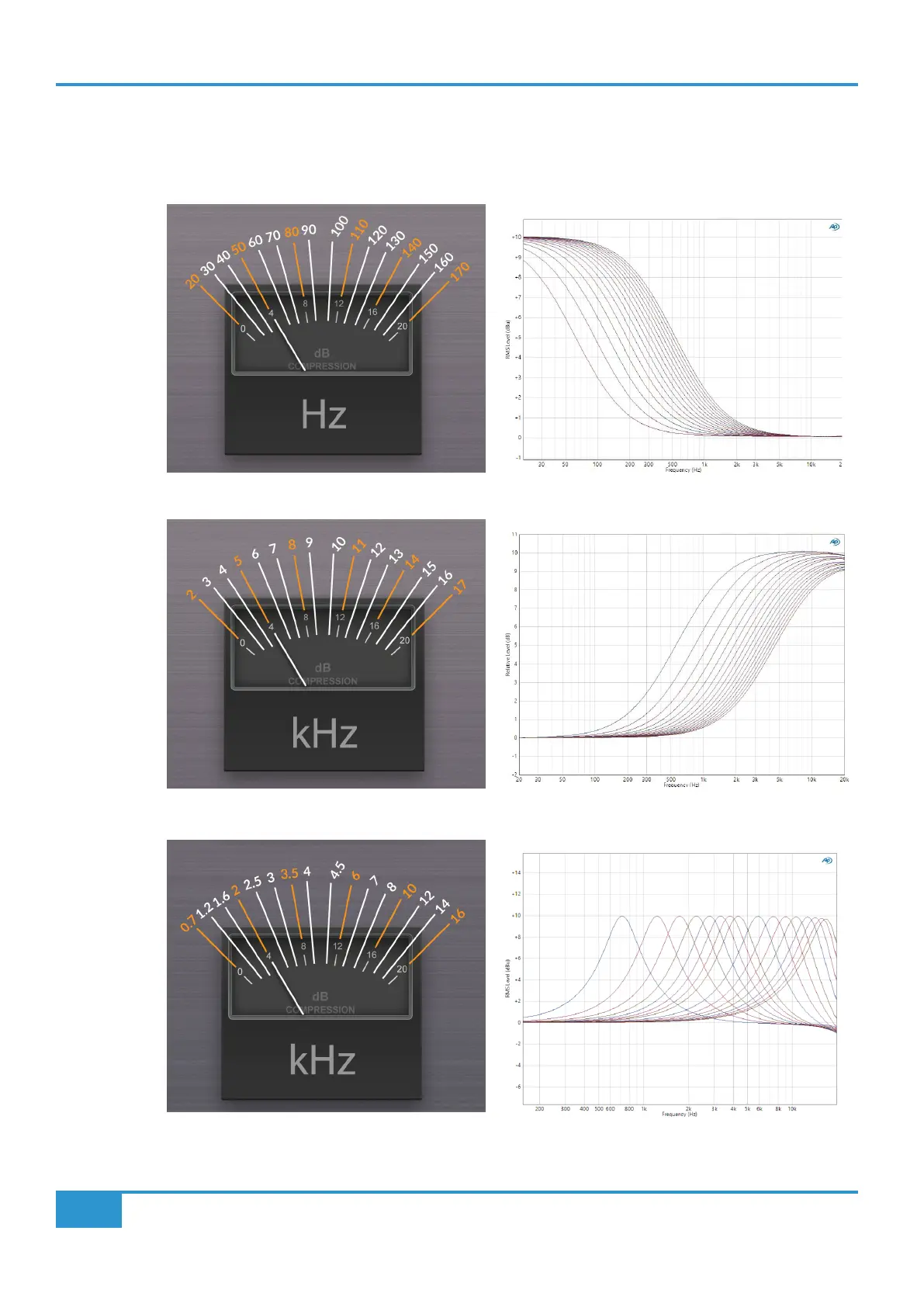

The illustrations below show you the frequency to which each needle position corresponds to. The default frequency of the LF Shelf
is 60 Hz. The default frequency of the HF Shelf is 6 kHz. The default frequency of the HF Bell is 4 kHz.
LF
HF
HF
BELL
The HF BELL filter is a Proportional Q design, reaching a Q value of 1.87 at maximum boost/cut (10dB). The Q is 1.04 at 5 dB.
