Solid Technologies ALLIANCE PS2ROU - Block Diagram of PS2 ROU; PS2 ROU Block Diagram

27 pages

To Next Page

To Previous Page

Confidential & Proprietary 10/27

ISED : 406.1~430MHz

450~470MHz

900I_PA

6MHz

FCC : 929~930MHz

935~940MHz

ISED : 929~930MHz

932~932.5MHz

932.5~935MHz

935~940MHz

The nominal Uplink

bandwidth

700PS_FN

17MHz

788~805MHz

800PS

10MHz

806~816MHz

VHF

80MHz

136~216MHz

UHF

132MHz

380~512MHz

900I_PA

6MHz

896~902MHz

2.1.2 Block Diagram of PS2ROU

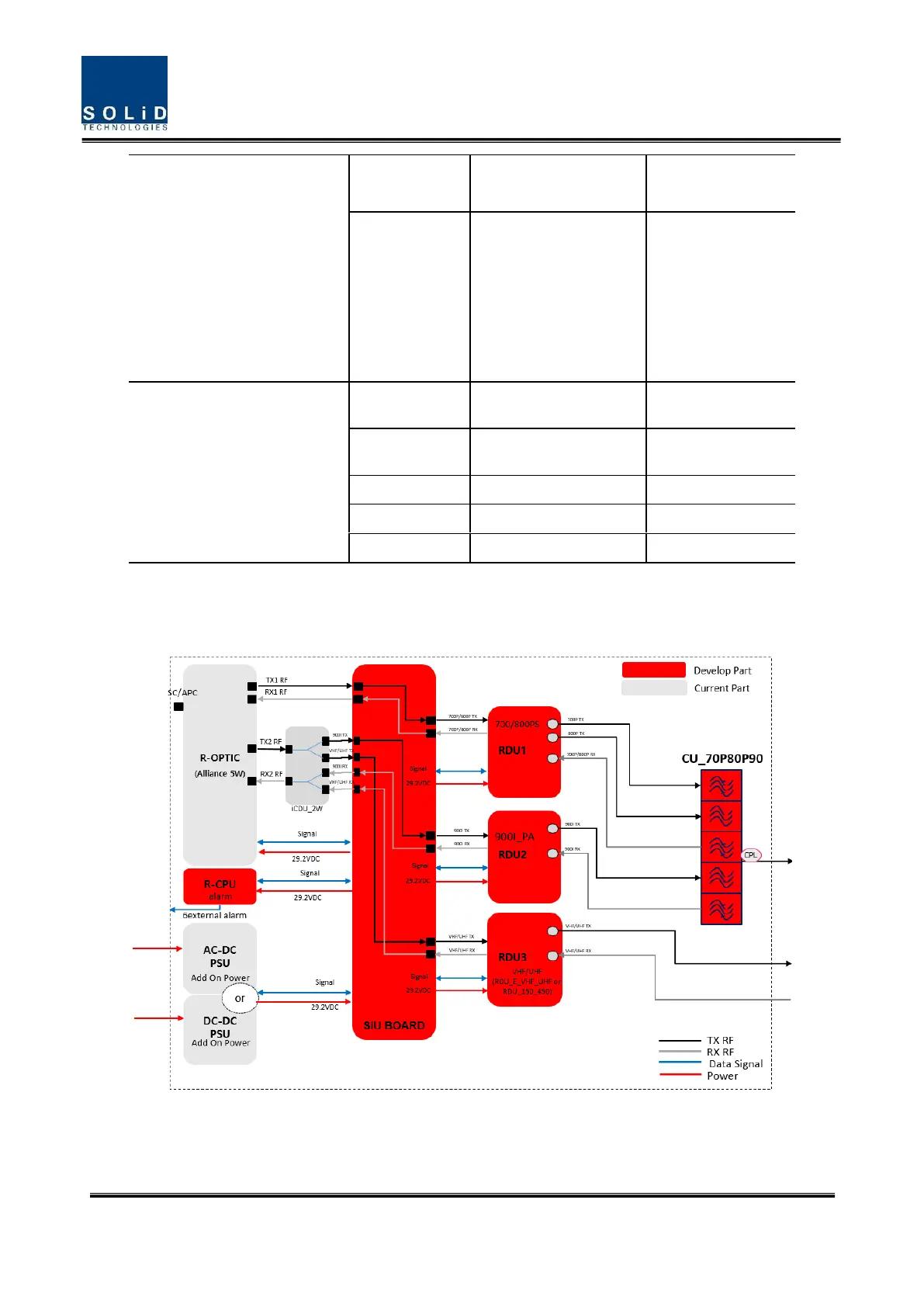

2.1.2.1 PS2ROU block diagram

Figure 3. PS2ROU Block diagram
