3.1.5 PS2ROU EXTERNAL ALM IN/OUT Port cabling
The ALM IN/OUT Connector is located at the bottom of Remote Unit enclosure fixed. Cable can
be connected by using connectors.

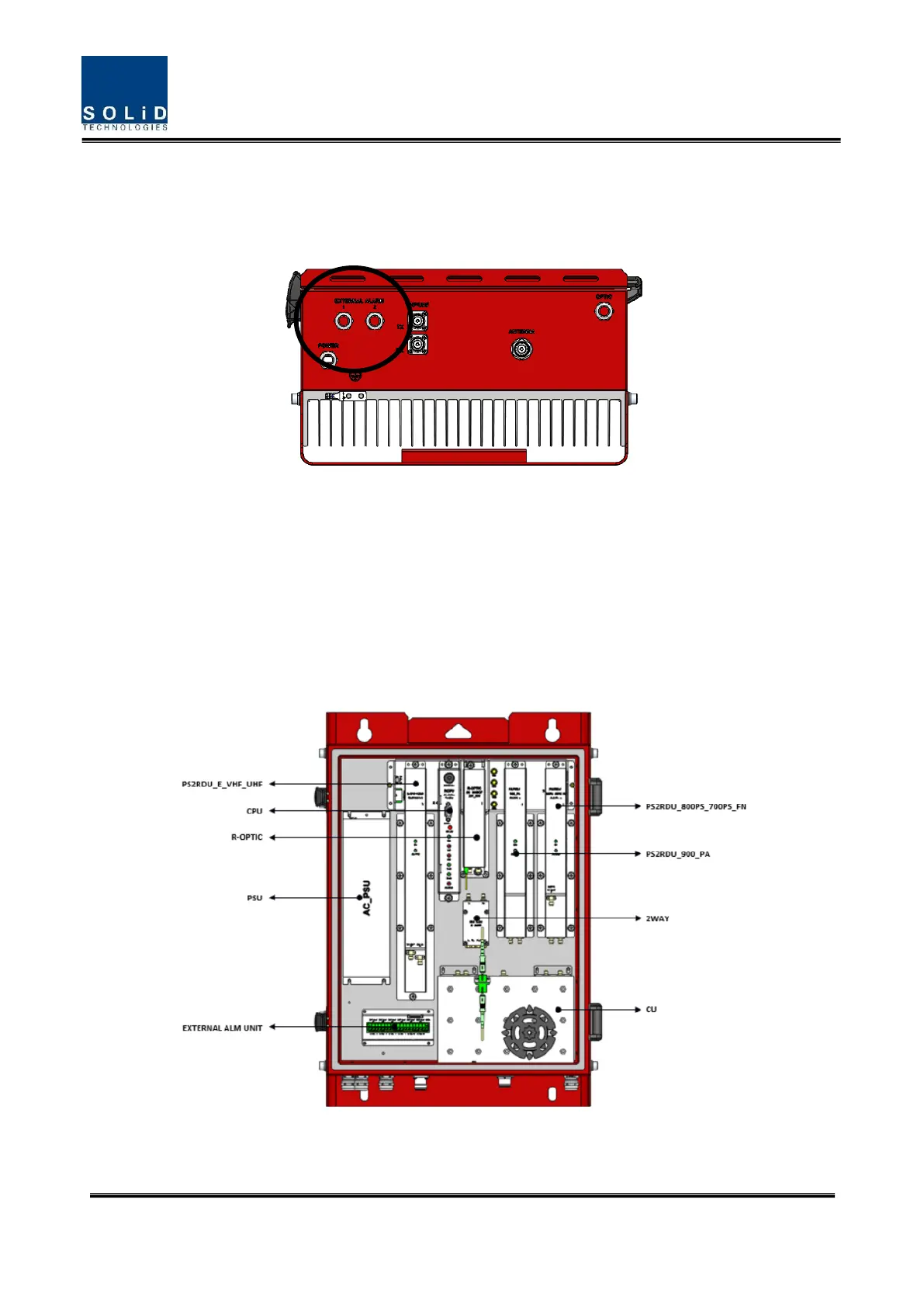

Figure 13. Location of ALM IN/OUT Connector
3.1.6 Mounting of PS2RDU
PS2ROU has slots to enable up to four PS2RDU modules to be mounted in it.
You can mount a PS2RDU into designated slot surely and should install each PS2RDU into its
designated location as shown in the installation diagram on the door of enclosure.
It is not possible to provide services with a PS2RDU module alone; you need to connect PS2RDU
cavity duplexer antenna port with CU’s designated port.
Figure 14. Location of each modules in the PS2ROU
