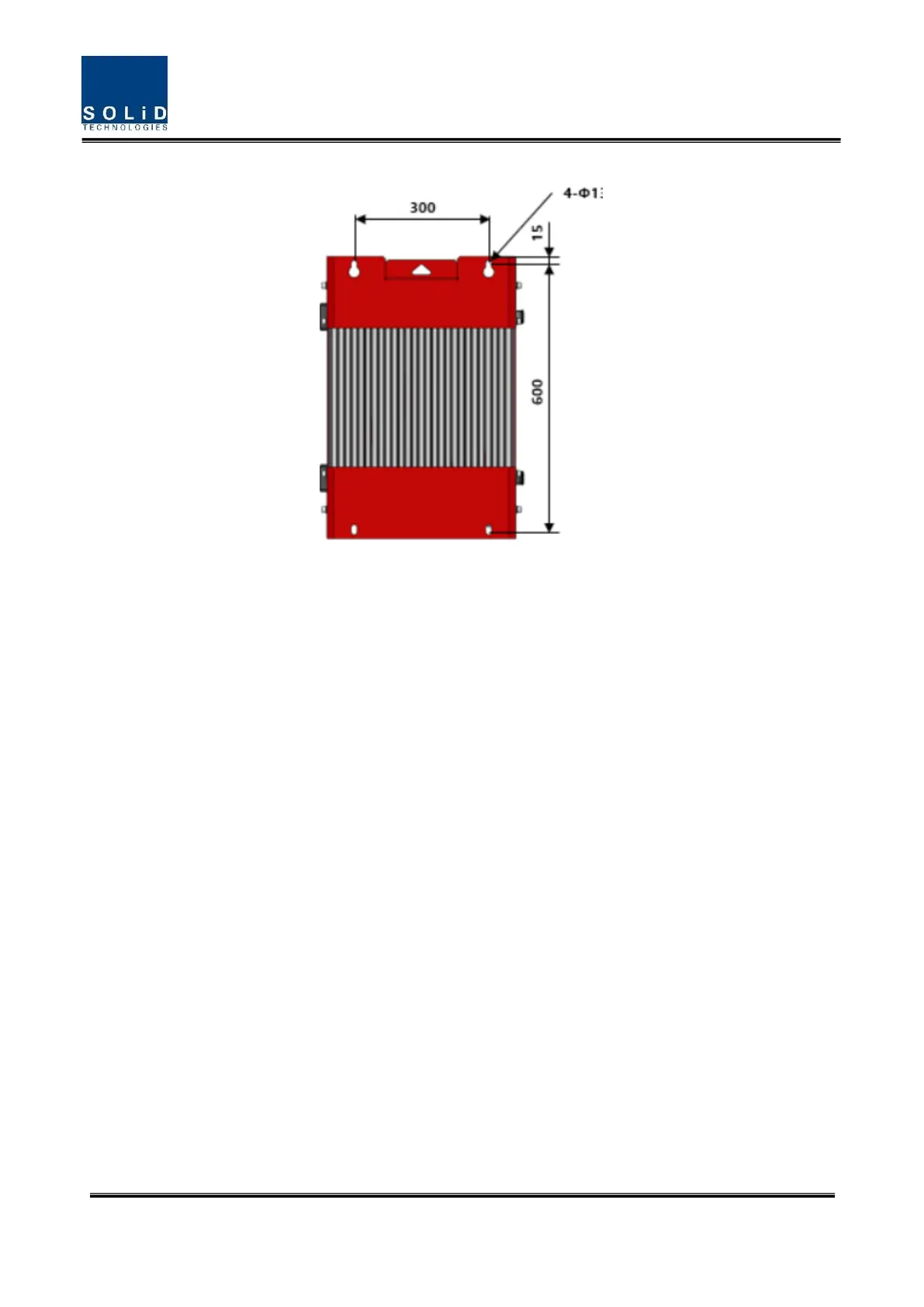

Figure 11. Dimension used to install PS2ROU on the WALL
3.1.3 PS2ROU Wall Mount Installation
PS2ROU’s installation bracket is attached on Enclosure when is delivered. It doesn’t need to remove
bracket to install enclosure. simply after installing 4 of M12 mounting bolts, secure 4 mounting bolts
tightly.
First, install 2 of M12 mounting bolts roughly half way on the enclosure and install enclosure over the
bolts and secure tightly.
Second, install 2 of M12 mounting bolts under the enclosure and secure tightly.
