8
Owner’s Manual
Located in hardware bag
Multi-wrench
13, 17 mm
Allen wrench - 6 mm
Allen wrench - 5 mm
Pre-installed hardware
M10 Nut
M10x60L Bolt
4 pcs
4 pcs
#8x0.625”L Screw
6 pcs
M8x70L Bolt
2 pcs
Hardware
Hardware will need to be removed and re-installed during the installation process
M4x10L Screw
8 pcs
M8x15L Bolt
M8 Washer
4 pcs
4 pcs
1
2
3
4
5
6
7
8
9
10
11
Console
Safety Key
Pulse Grip
Quick Key
Bottle Holder
Handlebar
Support Post
Motor Cover
Frame
Rear Foot
Rear Cover
No.
No.
Part Name
Part Name

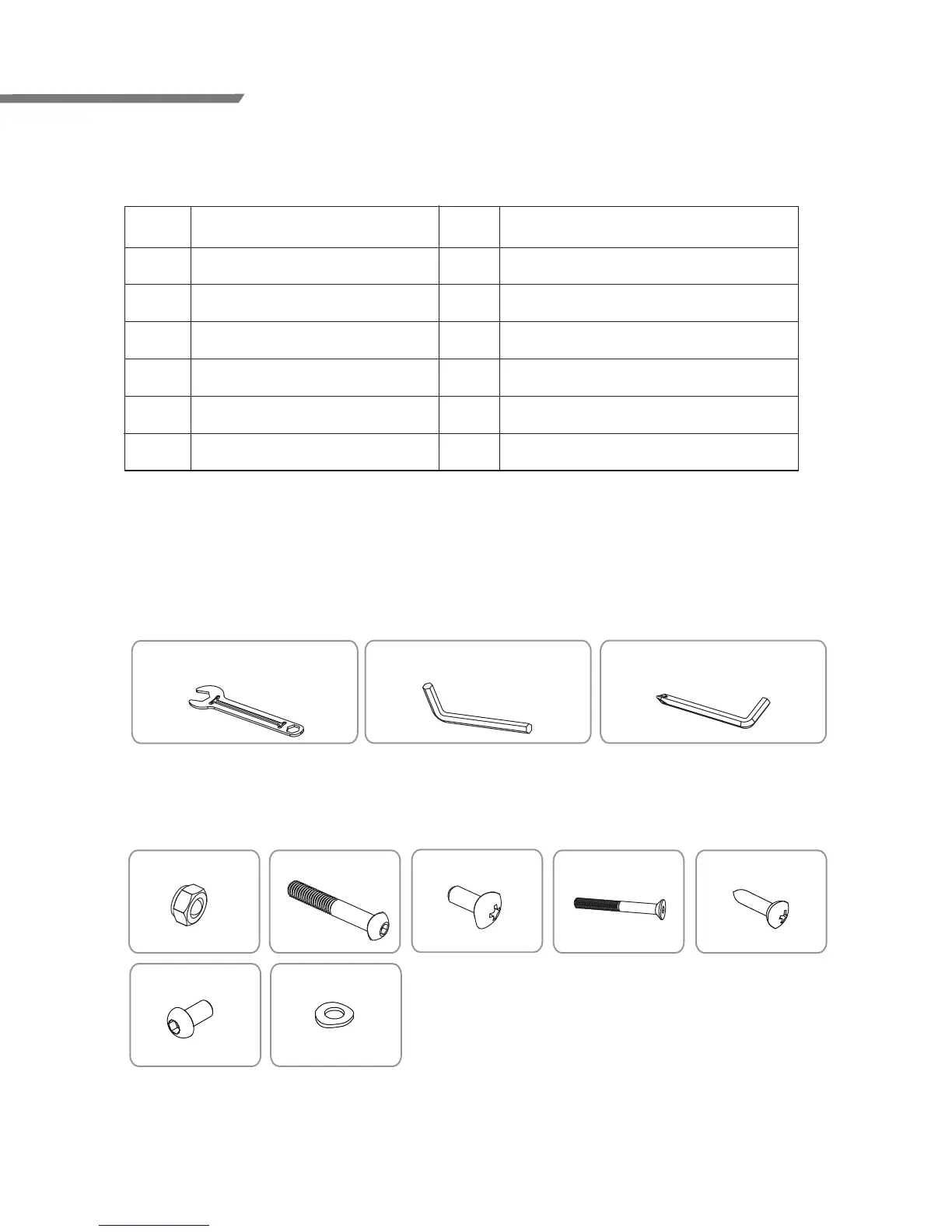

Parts List
Assembly Instructions (continued)
