SolidRF SR14652002A - Step 2: Install outdoor antenna over roofline; Step 3: Position indoor antenna in blind area

20
Step3:Keepindoorantennainthe“blindarea”oftheoutdoorantenna
1. Thefrontradiationmainbeamangleisabout90degrees;
2. Thereisaverylessenergyradiationareabehindtheantenna,whichwecallit
“blindarea”.Theangleoftheblindareaisabout60degrees;

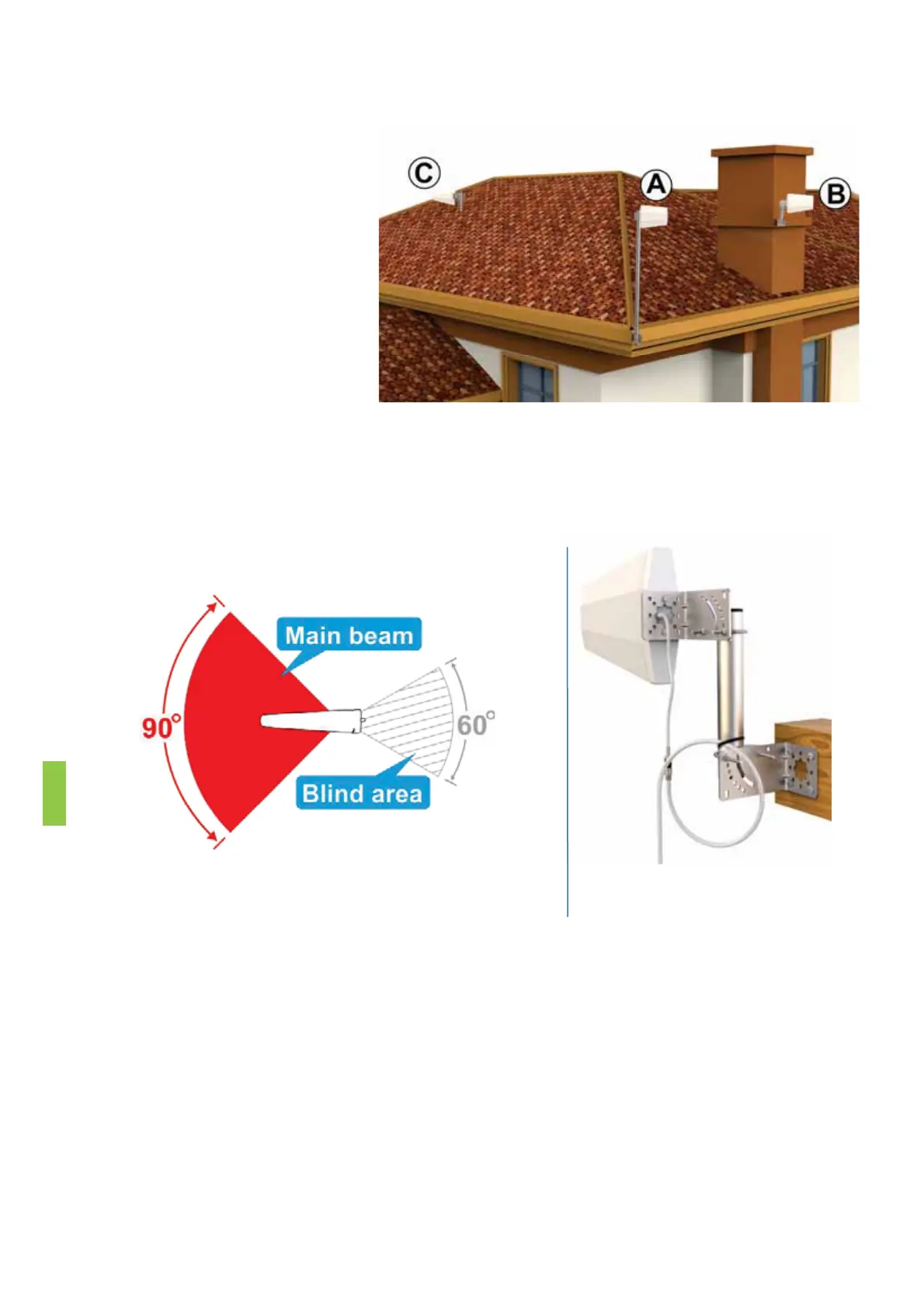

Topview(horizontal)ofoutdoorantenna


Front
Rear
Outdoor antenna
If you have oscillating issue, at the same time, due to the structure or size of the
house,yourinstallationcannotkeepenoughdistancebetweenindoorandoutdoor
antenna.Pleasesetupyourindoorantennainthe“blindarea”,thatwillincreasethe
isolationgreatly.Effectivelysolvetheproblemofoscillation.
Whenyoudothis,youroutdoorantennamaynotrightfacingthecelltower.Thatis
fine.Pleaseunderstandthatanydirectioninthemainbeamareawillbethesame
reception.Remember,theantenna'sforwardhorizontalmainbeamisabout90
degrees.
Step2:Outdoorantennamust
beinstalledovertheroofline
Theroofcanblockthesignal
couplingbetweentheindoorand
outdoorantennas,improvethe
stabilityofthesystem.Installing
theoutdoorantennaabovethe
roofcanformalargeisolation
areabetweenthetwoantennas.
Greatly reduce the signal leakage
betweenthetwoantennas.
