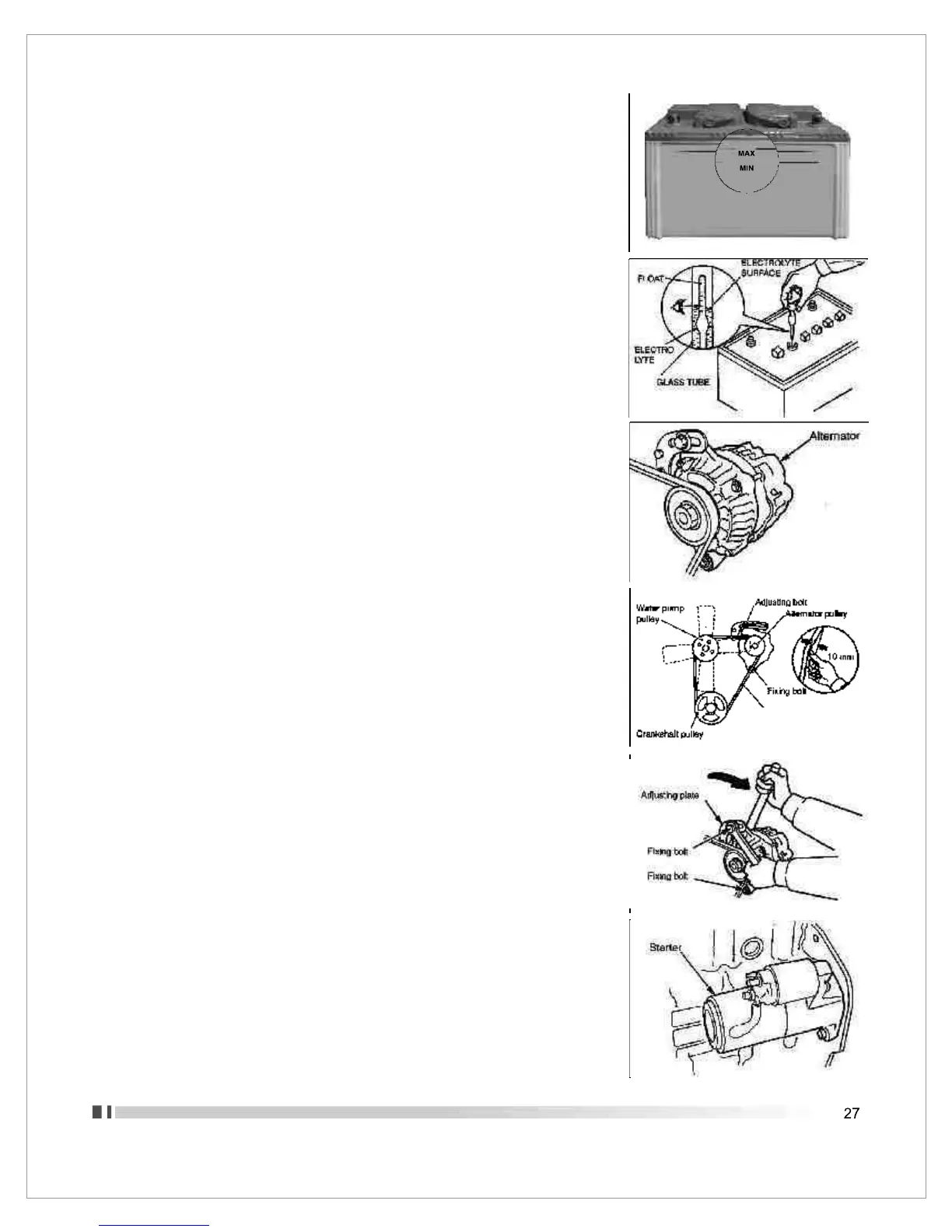

3.3 ELECTRICAL EQUIPMENTS
3.3.1 BATTERY AND ITS MAINTENANCE
12,V, 50 AH is mounted at front of the tractor.
1. CHECK ELECTROLYTE LEVEL
It must be as per the recommendation of battery manufacturer.
If required top up with distilled water. Never add acid.
2. CHECK CAREFULLY BATTERY CHARGING
Protect against freezing. Insure that terminals are clean and tight. Check
electrolyte battery charge. This operation is carried out using a battery
hydrometer. The value of a fully charged electrolyte is 1265. If below 1215
recharge the battery.
3. PRECAUTIONS
1. The electrolyte in the battery contains sulphuric acid. Which is
dangerous and burn the skin take all necessary precautions (protective
clothing)
2. If accidentally splash yourself with acid, take care not to breath in
the fumes, rinse throughly and consult a doctor immediately.
3. Keep the battery well away from any naked flame or sparks
3.3.2 ALTERNATOR
Alternator is fitted on Left side of engine and generates current which
charges battery for healthy electrical back up.
Rating: 12V, 30A
3.3.3 V-BELT CHECKING AND ADJUSTMENT
CHECKING:
1. Ensure for V-Belt free from defects such as wear, cuts or surface
separations, otherwise replace with genuine specified belt.
2. Inspect belt tension as instructed below:
Push the belt downward with approx. 98 N (10kgf) (22lbf) force midway
otherwise adjust the belt tension
ADJUSTING :
1. Removal belt cover the covers V-belt.
2. Loosen all retaining bolts of the alternator and adjusting plate.
3. Insert a bar between the alternator and cylinder block and use leverage
to move that alternator to have proper v-belt tension.
4. While V-belt tension is appropriate, retighten all the retaining bolts of the
alternator and adjusting plate.
5. Reinstall the belt cover.
3.3.4 STARTER MOTOR
Starter motor is mounted on the left side of the engine.
• The starting motor rotates the engine crankshaft for starting.
• Capacity and Rating: 12V, 1.8KW
SOLIS
20
OPERATOR
MANUAL
