TECHNICAL SPECIFICATIONS*
O P E R A T O R M A N U A L S O L I S 9 0 ( C R D I )

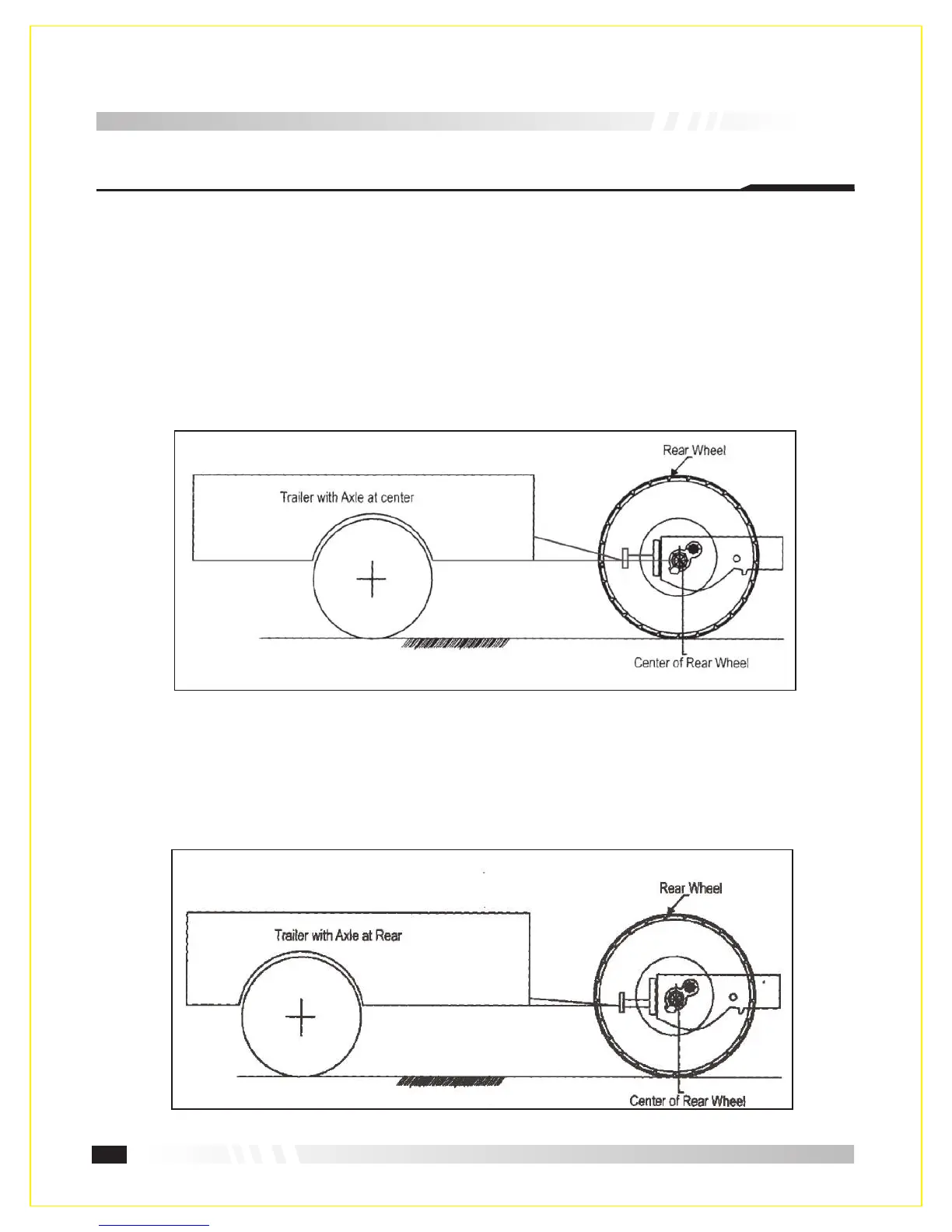

6.2 Usage of Tractor with Trailer
1. When Axle of Trailer is in Centre
When the axle of the trailer is in the centre side the height of trailer hitch plate area where trailer attachment lie,
should be at height equal to rear axles or tractor. It should be not in lower position. In this case trailer hitch should
be mounted in axis of rear axles & should be mounted on second hole from upper side provided on angle brackets
for mounting trailer hitch.
2. When Axle of Trailer is on the Rear Side
When the axle of the trailer in on the rear side, the height of trailer hitch plate area where trailer attachment lie, should
be at height lower than rear axles of tractor. It should be not in upper position. In this case trailer hitch should be
mounted lower than the axis of rear axles & should be mounted on third hole from upper side provided on angle brackets
for mounting trailer hitch.
Front end lifting is not a defect of tractor, it depends upon the hitch point of trailer. Guidelines
to avoid the same are given below:
