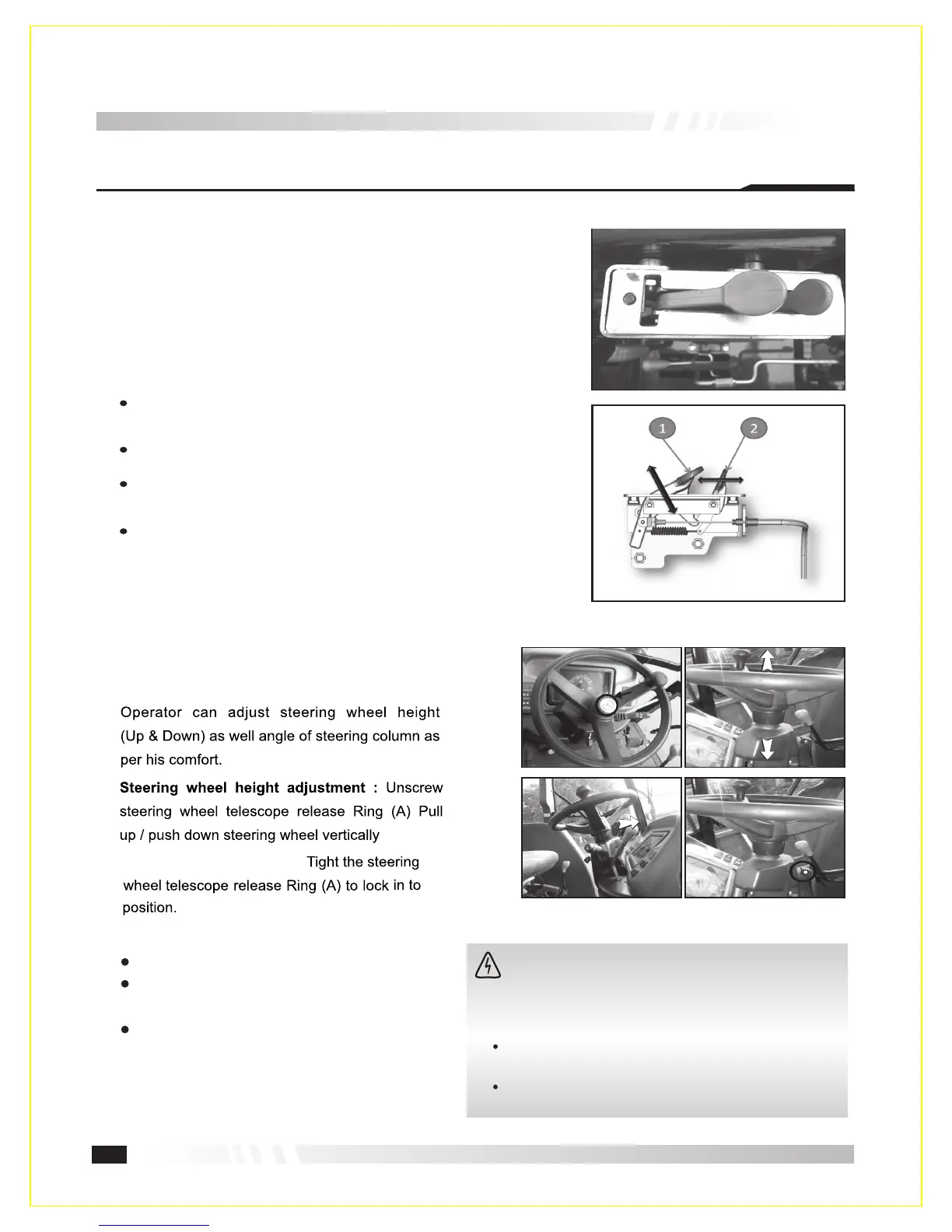

3.12 Adjusting Steering Wheel Position
(Tilting & Height) (Fig. 3-13)
Tilting Steering Wheel (Fig. 3-13) :
Lift the lever (B)
Move the steering column assembly to desired
angle as shown in fig 2.
Release the lever to lock the steering column in
adjusted position.
to desire
height as shown in the fig 1.
AA
Fig. 3-13
37
INSTRUMENTS AND CONTROLS
3.11 Auto
Auto Lift switch is provided on right fender, for easy
reach of operator. Best suitable in applications where
immediate lifting and lowering of hydraulic linkage is
required without disturbing the original position of lift
with the levers.
Auto Lift
For lifting the implement to top position without
operation of levers.
One touch lifting and dropping of implement.
Pressing switch (1) will lower the lift. Keep this
lever pressed for normal working of lift.
Releasing switch (2) will raise the lift to top position.
Lift (Optional Feature) (Fig. 3-12)
O P E R A T O R M A N U A L S O L I S 9 0 ( C R D I )
Fig.3-12
CAUTION : Never adjust the steering wheel when the
tractor in motion. If you determine that a re-adjustment is
necessary, stop the tractor safely and adjust the steering
wheel to the correct position.
Incorrect use of the steering column position can cause
serious and fatal injury.
After Adjusting the steering column kindly insure locking of
adjustment lever & screw properly.
