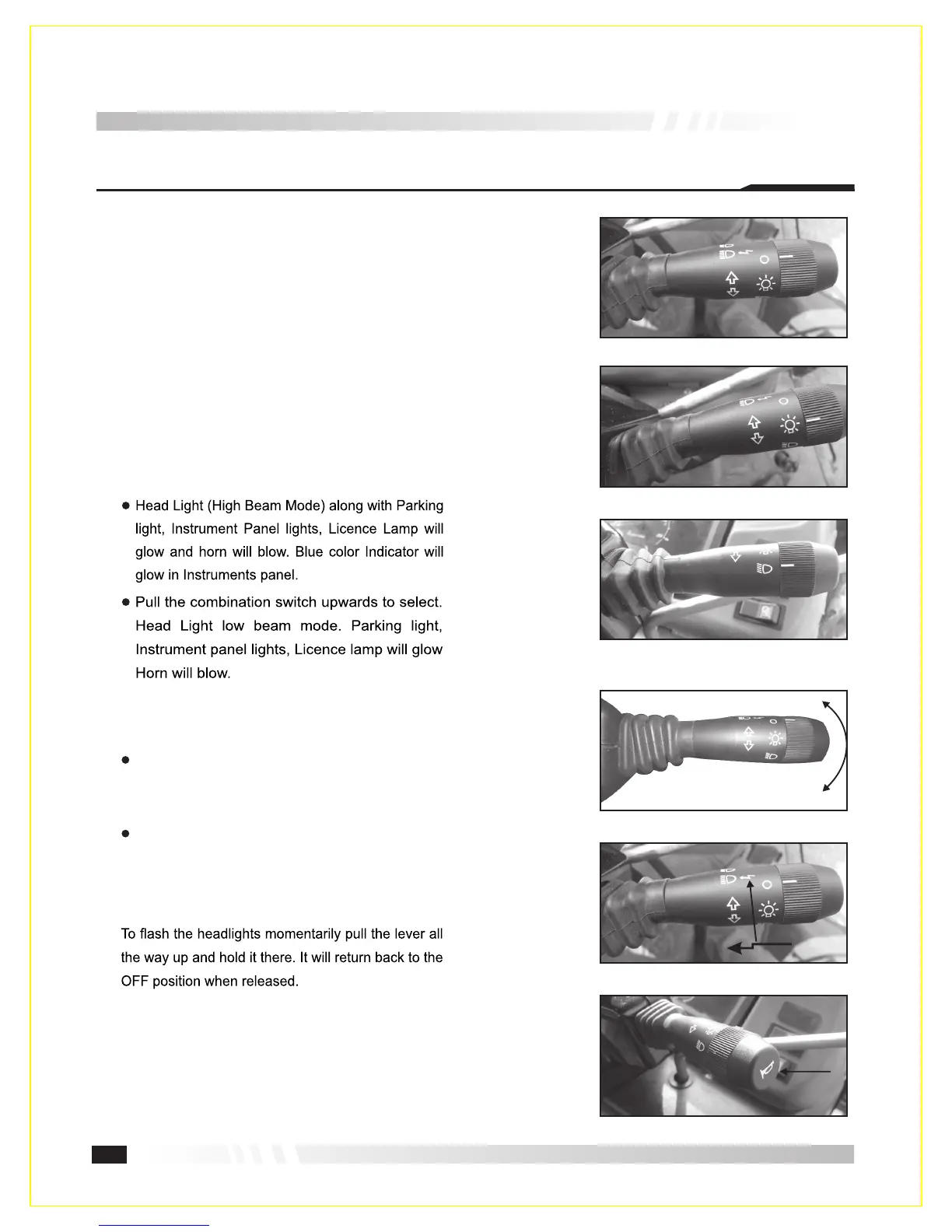

Fig. 3.7 (A)
Fig. 3.7 (c)
Fig. 3.7 (b)
Fig. 3.8 (a)
Fig. 3.8 (b)
Fig. 3.8 (c)
Switch is located on right side of steering column
operator parking light, Head lights, Turn signal and
Horn.
‘OFF’ Position Fig 3.7(a) (Ignition Switch ON) :
All lights ‘OFF’ Horn will blow.
st
1 Click Fig 3.7(b) (Anti Clock Wise) Ignition S/W ‘ON’ :
Parking light, Instrument panel lights, Licence lamp
will glow and Horn will blow but head light are OFF.
nd
2 Click Fig 3.7(c) (Anti Clock Wise) Ignition Switch ‘ON’ :
Horn Switch (Fig. - 3.8 c)
Press in the end of combination switch to blow horn.
Horn will not blow if ignition switch is OFF.
Indicator Left And Right (Fig. - 3.8)
Working with Ignition Switch ‘ON’.
Combination Switch Lever Shifted towards front -
Left hand Indicator will glow.
Middle Position : Indicator OFF
Combination Lever shifted towards operator - Right
hand Indicator will glow.
Indicator will not glow if Ignition is OFF.
Passing Light
NOTE : Passing light lift will glow whether Head
light is turned to ON or OFF.
35
INSTRUMENTS AND CONTROLS
O P E R A T O R M A N U A L S O L I S 9 0 ( C R D I )
3.7 Combination Switch (Lighting /
Turn Signal / Horn Control Lever
