NOTE: Consult the Operation chapter for instructions on how to correctly use the controls.
3.1 Instruments and controls
INSTRUMENTS AND CONTROLS
31
O P E R A T O R M A N U A L S O L I S 9 0 ( C R D I )
Instrument Cluster
Accelerator hand lever
Brake Pedals
Accelerator Pedal
Gearshift control lever
Speed range selector lever
(Hi/Lo/mid)
Rear differential lock
pedal
Liftomatic Switch
Position control lever (Black)
Draft control lever (Red)
Auxiliary hydraulic control levers
540 & 540E PTO
Selection Lever
PTO Lever
Forward/Reverse shuttle lever
Clutch Pedal
Independent parking
brake lever
2WD/4WD engagement
lever (if equipped)
Independent
PTO Clutch Lever

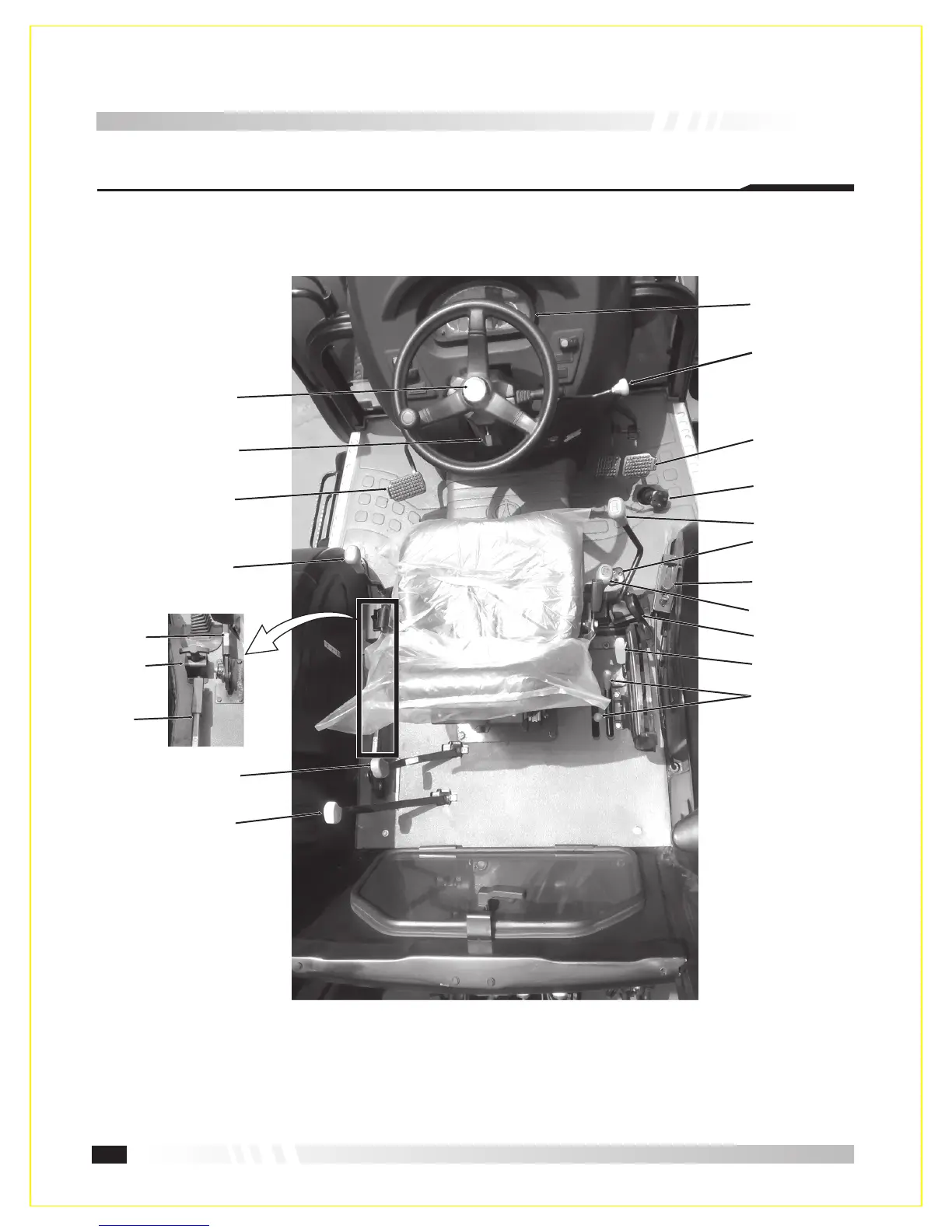

Fig.3-1
Steering Tilt Adjustment Lever
Steering Telescopic
Adjustment Lever
