Standard delivery; Control and function elements
ENGLISH 7
2. Standard delivery
• Brushcutter partially assembled; the following components are supplied separately and require assembly
• Handle subject to model and all parts required to complete the assembly
• Shoulder strap
• Shield, protective bar (line trimmer assembled) and all parts required to assemble the shield
• Cutting tool: (model-specific, for metal cutting blades this also includes a corresponding transport protector)
• All assembly parts required to fit the grass cutter blade and the nylon head (all models)
• Tools: combination spanner, retaining pin and screw driver
• Instruction manual, the EC declaration of conformity on a separate piece of paper

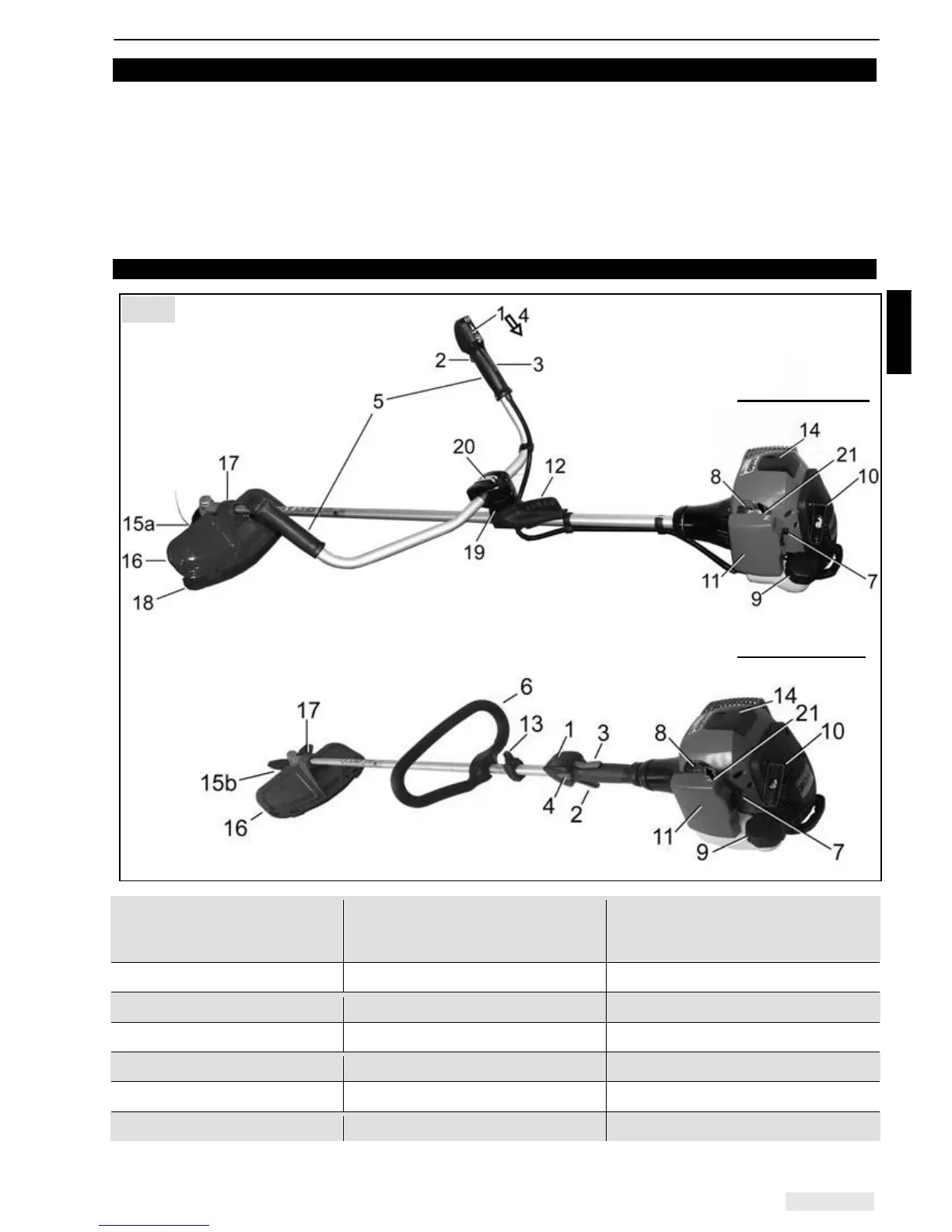

3. Control and function elements
Mod. 109B / 111B
Mod. 109L / 111L
1 Stop-switch 8 Primer 15 Cutter
(a - e. g.: nylon line head)
(b - e. g.: grass cutting blade)
2 Throttle lever 9 Fuel cap 16 Shield
3 Gas lever lock 10 Starter grip 17 Retainer
4 Throttle lock 11 Air filter cover 18 Protective bar
5* Bicycle handlebar 12* Strap track 19* Handle support
6* Loop handle 13* Strap attachment 20* Quick acting tension screw
7 Choke lever 14 Spark plug cap 21 Type plate
*
Depending on the version
Fig. 1
