WARNING.
Make sure that you select the correct lever position, i.e. that it is firmly engaged.
M) GEAR LEVER
This lever serves to select the advance of the machine (forward, neutral, reverse).
Used together with the crawl/high speed gear selector lever it gives 2 forward
gears and two reverse gears.
WARNING : Select the required gear only after disengaging the forward clutch by
releasing the relative lever ( fig. 1, ref. C).
7. ASSEMBLY INSTRUCTIONS FOR THE HANDLEBARS AND
FRONT SUPPORT WITH WHEELS
The flail mower is delivered with the handlebars and front support with wheels dis-
assembled. Remove the cardboard packaging or crate (to be disposed of in an
appropriate manner, in accordance with current regulations in force).
To assemble, proceed as follows :
-Lift the handlebar and insert it in the support shown in Fig. 3 ref. B. Then feed the
screw stay (Fig. 3 ref. C) through the relative holes and secure it on both sides
using the screws and washers provided.
- Position the support with front wheels and connect the height adjustment piece
(Fig. 3 ref. D) using the screw and washer provided. Fix it to both sides of the
bonnet as well using the screws, washers and spacers provided, as shown in
Fig. 3 ref. A.
- Fix the safety bar ( Fig.3 ref. E ) to the special holes on the two front sides of
the wheel support using the screws, washers and nuts provided.

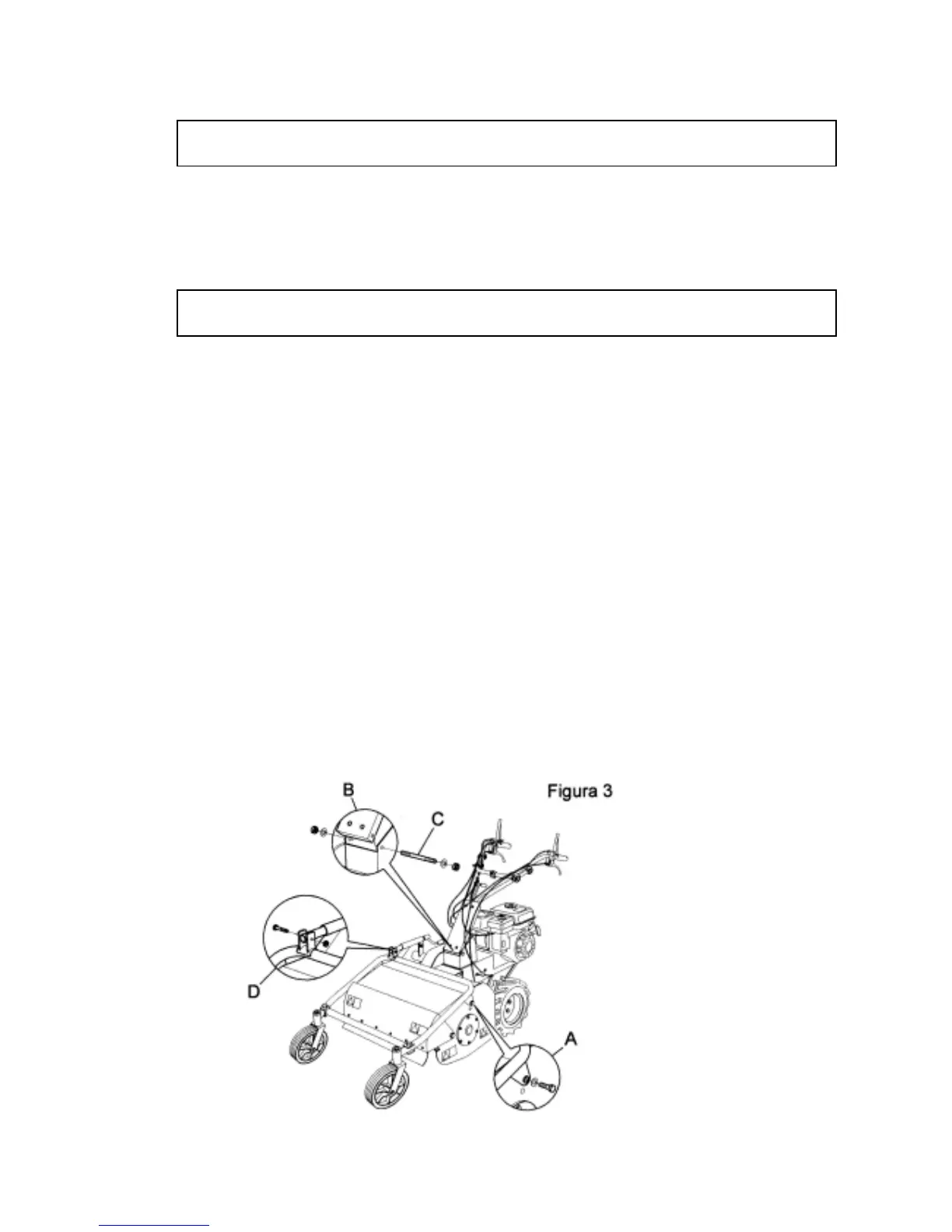

Figure 3
