5. MAIN PARTS OF THE MACHINE
The machine consists of the following main parts
A- Handlebar height adjustment lever
B- Flail rotor clutch control lever
C- Forward clutch control lever
D- Accelerator control lever
E- Cutting height adjustment lever
F- Front guard
G- Front wheels
H- Right wheel release lever
H1 - Left wheel release lever
I-On/off switch (1/0)
L- Crawl/high speed gear selector lever
M- Gear lever
N- GX 200 engine

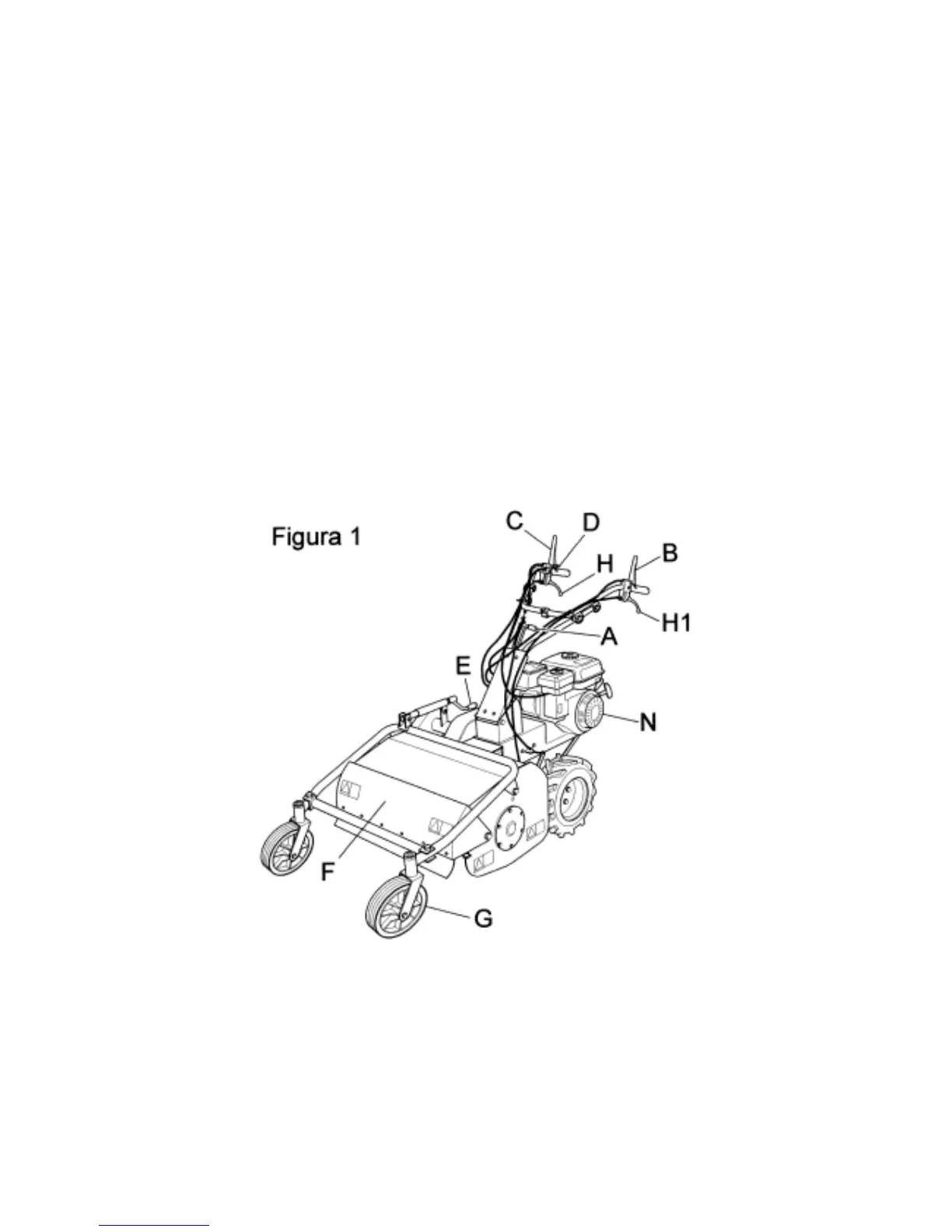

Figure 1
