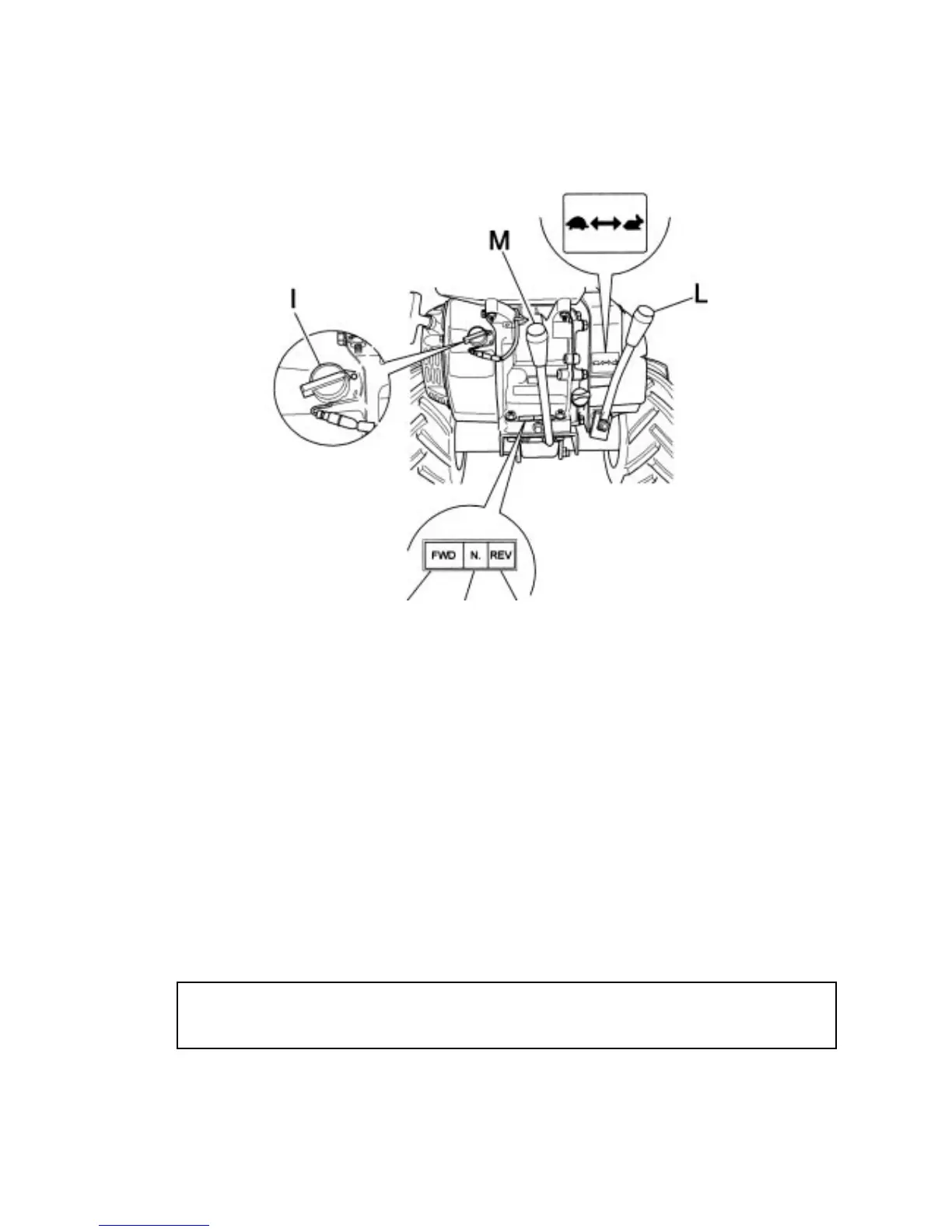

Forward Neutral Reverse Figure 2
gear gear
6. CONTROLS AND ADJUSTMENTS
A) HANDLEBAR HEIGHT ADJUSTMENT LEVER
The height of the handlebars can be adjusted to suit both the user and the working
conditions. Set the handlebars at user hip height.
B) FLAIL ROTOR CLUTCH CONTROL LEVER
This is used to engage and disengage rotary movement of the flail holder rotor.
Lowering the lever engages the clutch and releasing it disengages the clutch. The
flail brake is connected to this lever, so the brake operates automatically when the
lever is released and the rotor stops within a few seconds.
WARNING
The flail rotor rotates at high speed if the engine is running and the flail clutch is
engaged, regardless of the position of the forward clutch.
