! Cover the machine with a sheet after the engine and silencer have cooled
down.
! Have the flail and service brakes replaced by an authorized workshop if their
safety function does not work perfectly.
! It is strictly forbidden to place/leave unattended on the flail mower any poten-
tially dangerous objects which may put the safety of persons or the machine at
risk.
! Keep the machine in a good, clean state; do not leave it outside exposed to in-
clement weather conditions.
! After use store the machine in a place where children have no access. Always
allow the machine to cool down before putting it away.
! After use store the machine in a place where fuel vapours cannot reach a na-
ked flame or sparks.
! In the instance of a long period of non-use, drain the fuel tank completely.
Use of the machine does not require specific lighting.
However, the recommended minimum amount of light (e.g. 200 lux) is enough to
be able to read the notices on the machine and to operate it without running risks
caused by poor light.
CHECKING AND REPLACING THE TRANSMISSION OIL.

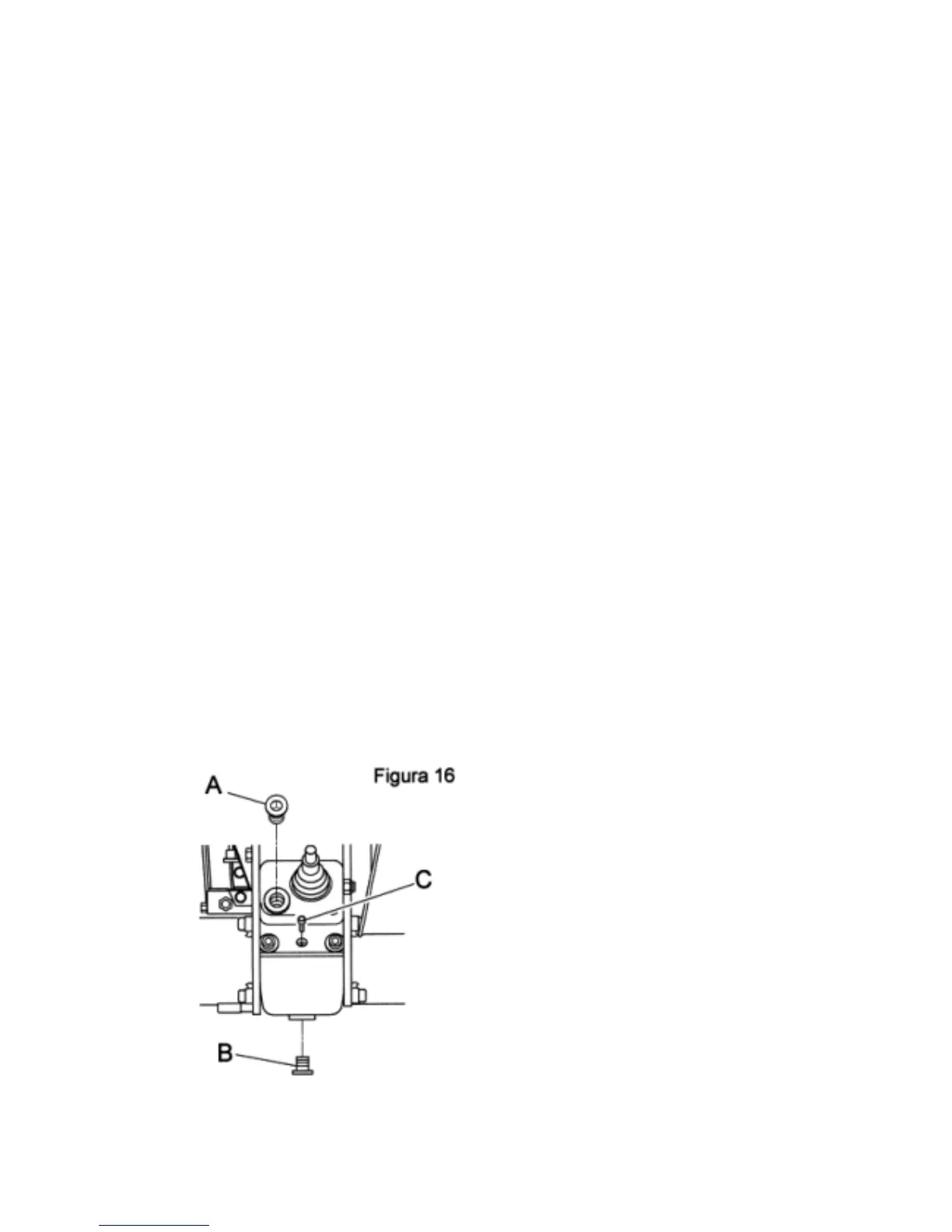

Check the transmission oil level using the relative oil level screw ( fig. 16 ref. C). If
oil leaks out upon removal of this screw then there is enough of it in the transmis-
sion. If not, remove the filling cap shown in fig. 16 ref. A, then top up with SAE 90.
The oil should be replaced after the first 20 hours of use and after this every 100
working hours.
Remove the drainage cap shown in fig. 16 ( ref. B) and allow all the oil to run out.
After refitting the drainage cap, fill the transmission from the filling cap with SAE 90
transmission oil.
Refit the lid securely to prevent any leakage of oil.
Figure 16
