UDT MODELS:

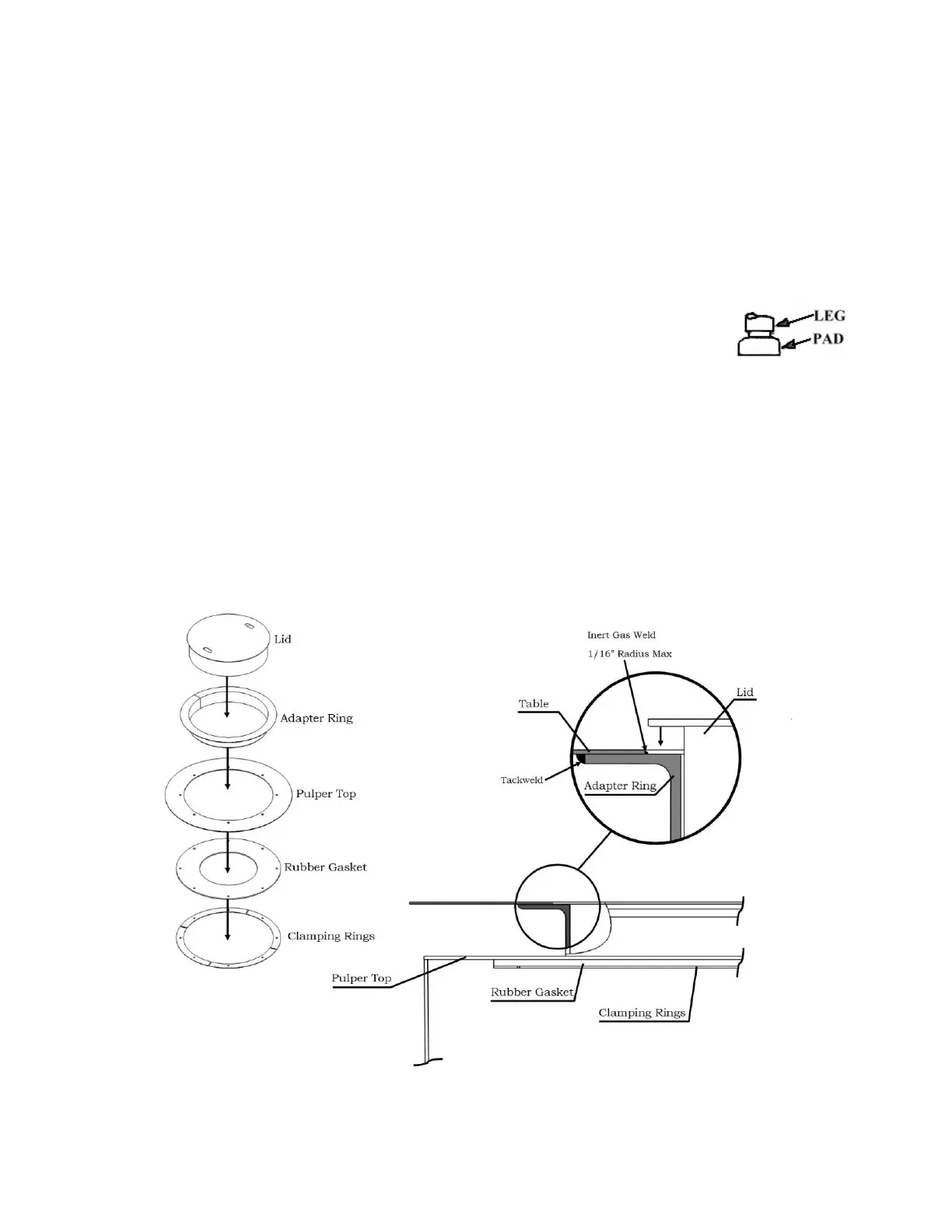

1. Cut a hole in the top of the table as shown on the drawing (If not done by table
manufacturer).
2. Center the provided UDT Adapter beneath the opening and weld it into place as shown.
Please follow print detail for welding instructions (if not done by table manufacturer).
3. Put the Pulper into position.
4. Place the anti-vibration pads under each leg of the Pulper and Hydra-
Extractor
®
.
5. Adjust the Pulper and Hydra-Extractor
®
legs so that the unit sits level and the rubber UDT
gasket provides a watertight seal with 2” clearance between Pulper top and the
underside of the table.
6. Install the provided trough gasket between the Pulpers inlet and the trough outlet and
secure with the provided hardware. Holes will need to be drilled in the field
7. Trim UDT Rubber Gasket to fit tightly around the pulper lid.
