ELECTRICAL INSTALLATION

1. Pre-wired Som-A-Trol

, operator devices & electric valves by Somat.

2. Install conduits from panel to prewired junction box, pull high voltage wires and low voltage

wires through separate conduit and do the final terminations.

3. Ground all electrical equipment.

4. Control circuit to be 115 VAC and/or 24VDC nominal. (See Approved Drawings)

5. All Som-A-Trol panels are to be wired in accordance to local, state and/or national electric

code specifications.

6. Integral pushbuttons are in panel door and pre-wired at factory. Optional remote push

button station if supplied; to be mounted & wired at workstation by electrician. (Bracket

Required by Customer)

PANEL & OPTIONAL REMOTE PUSH BUTTON STATION MOUNTING

1. Mount the Som-A-Trol

(electrical control panel) in a suitable location (see installation

Drawings) so that the bottom of the panel is at least 48" above the finished floor or in

accordance with ADA and local requirements.

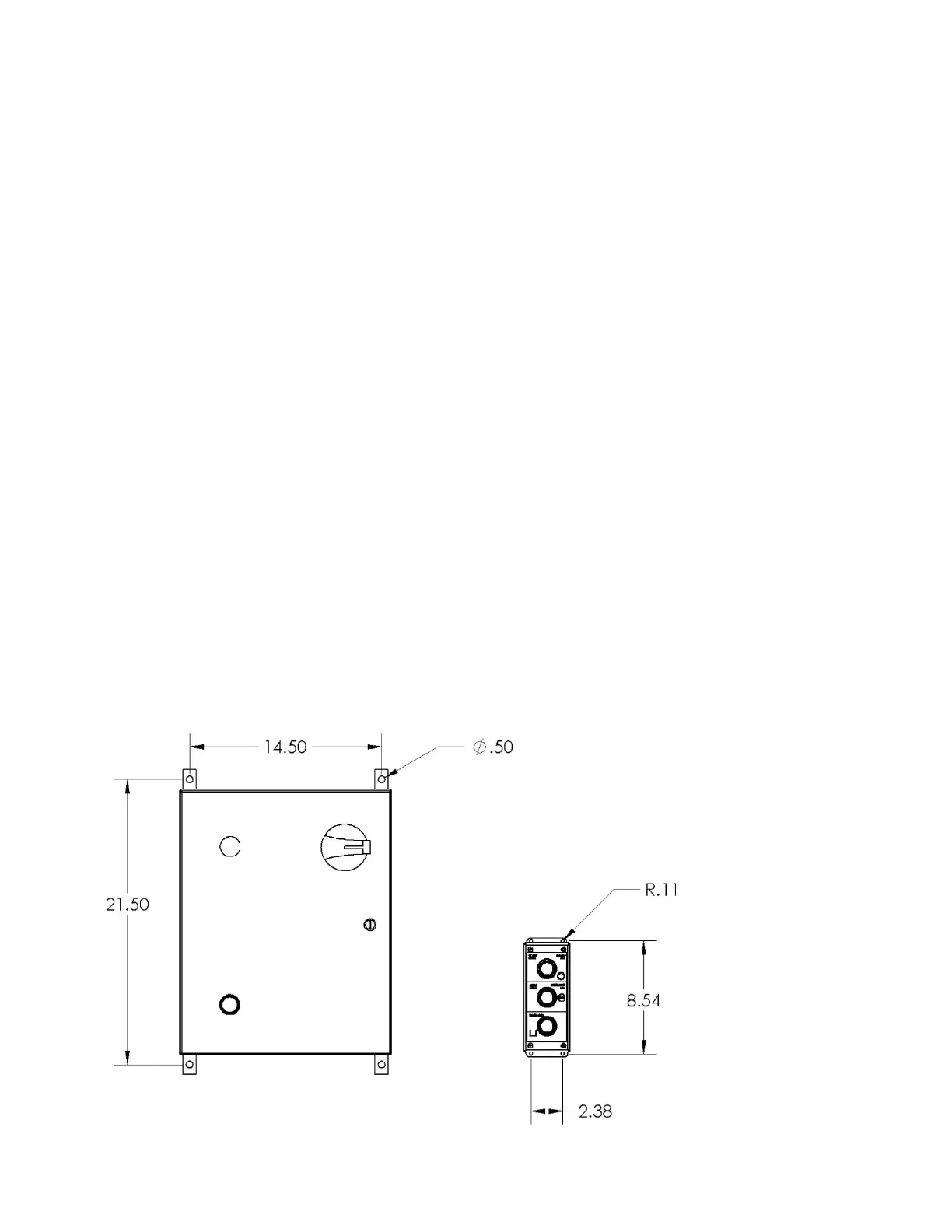

2. Install the Optional Remote Pushbutton Station onto the Dish Table or at another convenient

location. (See Diagram and Installation Drawings.)
