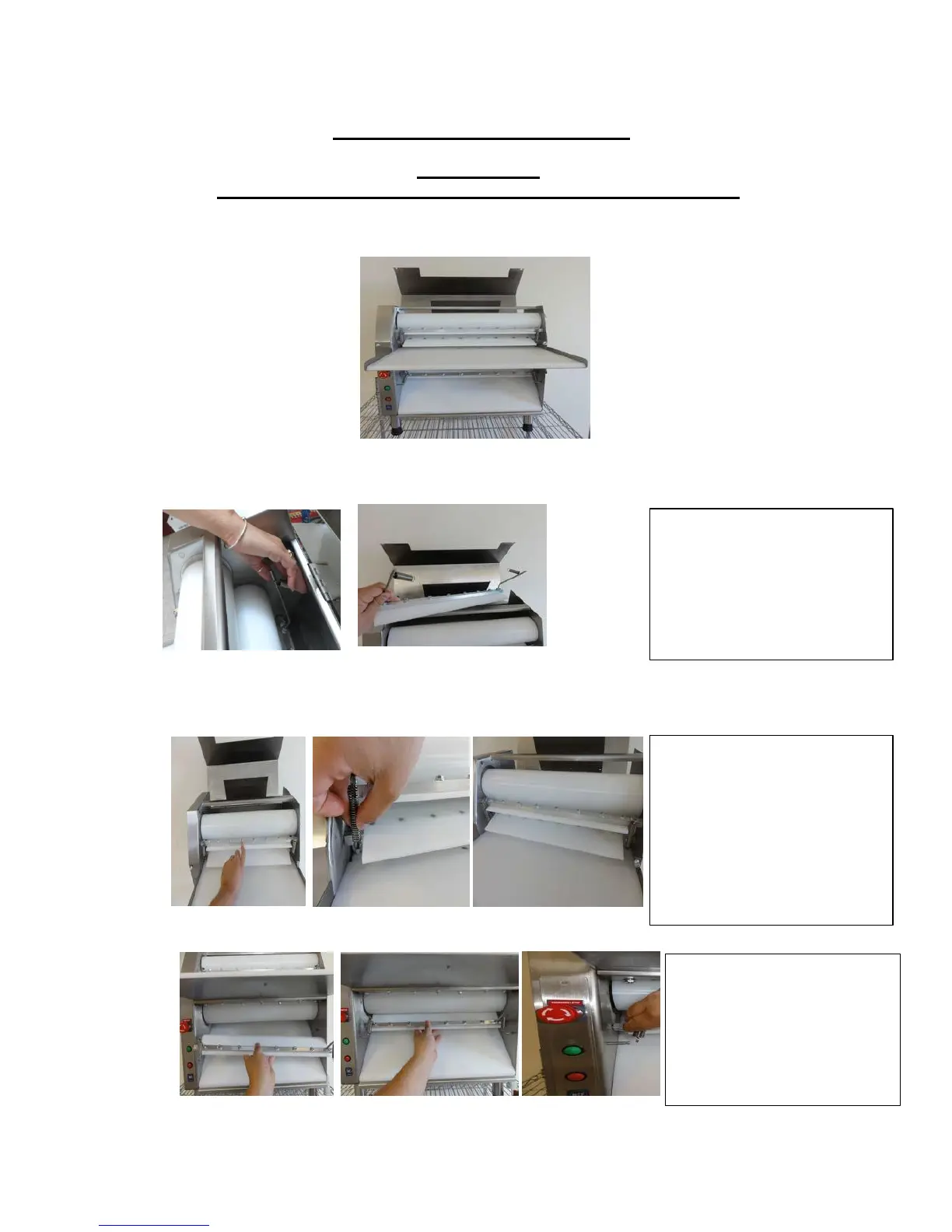

Removing & Installing scrapers
!! CAUTION !!
DISCONNECT THE POWER CORD OF THE MACHINE BEFORE
Open the safety cover by loosening the two thumb screws.
Scraper # 1
All scrapers are readily removable.
#1 is located behind the rollers in the
back of the machine.
This scraper should sit on top of the
scraper pins and point between the
middle and bottom rolls.
When springs are latched, the
beveled side of the scraper will push
up against the middle roll.
Scraper # 2 & 3
Scraper # 4
#2 & #3 attach to one another. The
#2 scraper lies on top of the scraper
pins and the beveled edge pushes
towards the top roll.
The springs from the #2 scraper
attach to the #3 Scraper forcing the
slots in the shaft to go inside the
scraper pins. The #3 beveled edge
pushes against the middle roll and
acts as a guard also.
#4 is located under the discharge
tray and presses up against the
bottom roll.
The slots on the scraper rest on top
of the scraper pins pushing the
plastic blade against the bottom
roll. The springs latch onto the
slotted pins under the scraper pins.
