User Manual SPA Snow Pack Analyser
- 4 -

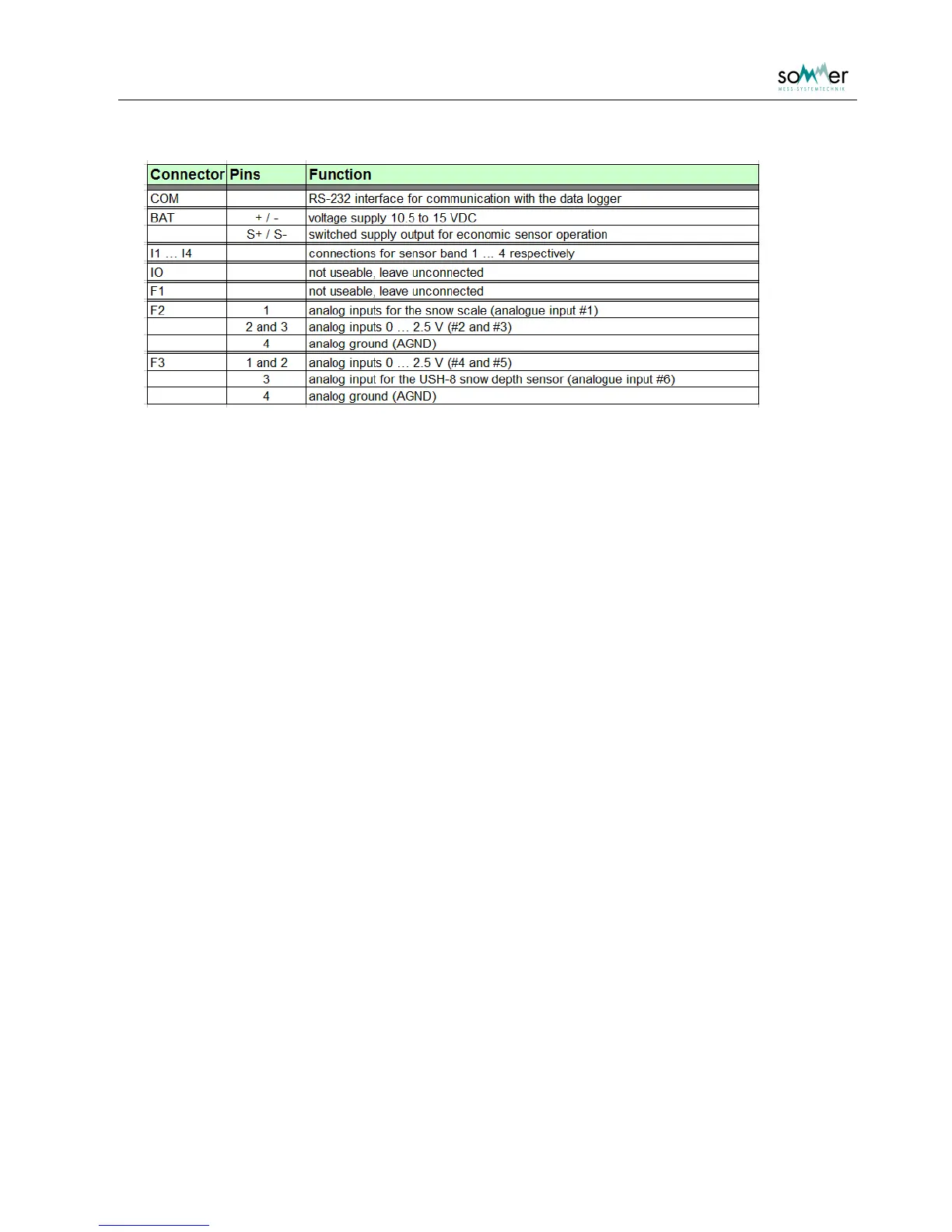

Tab. 1: Connector assignment for Fig. 3;
the analogue input F3-3 (#6) is reserved for the USH-8 snow depth sensor
2.5. Framework
The framework enables the installation of one sloping and up to three horizontal sensors and secures a
tight and upright positioning of the sensors. It includes the basement framework, a mast for the installation
of the sloping sensor, the snow depth sensor and the housing and suspension equipment for the SPA
sensors consisting of springs, levers and stretching devices.
