SOMMER TQ-S Tracer User Manual

Sommer GmbH 29

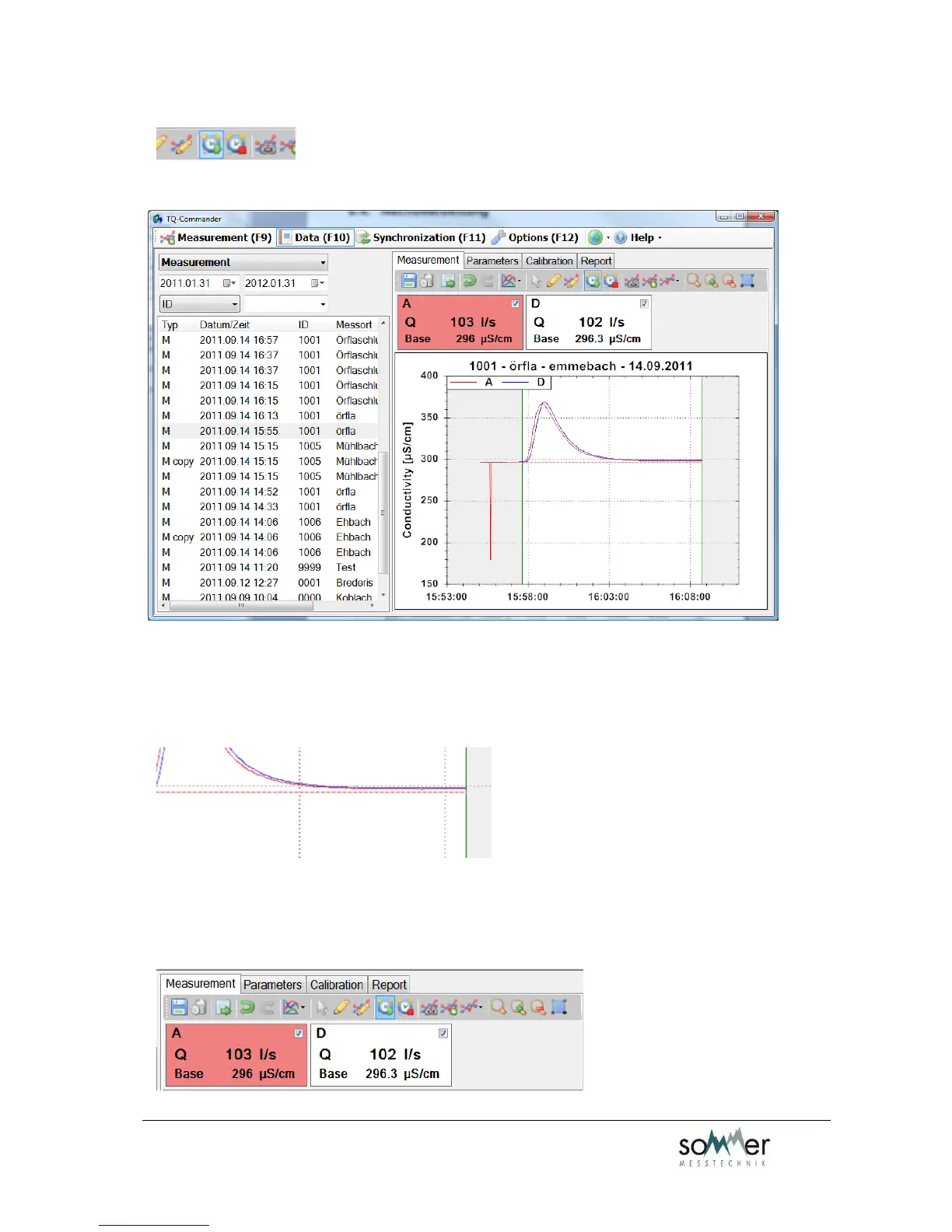

To exclude the peak from the discharge calculation click on the ”Set calculation begin“ symbol:
 In the diagram a cursor appears. By clicking on any point in the diagram the “calculation begin” can
be changed.
Changing the course of the base value
If the measured values do not reach their start values, maybe the base values have changed during
the measurement:
This can be considered with the change of the base line. First choose a measurement curve by a click
on the field with its discharge value. Then click on the symbol ”Define base line“ and move the end
point with the mouse:
