P-4 ● P-5 ● P-6 – USER MANUAL

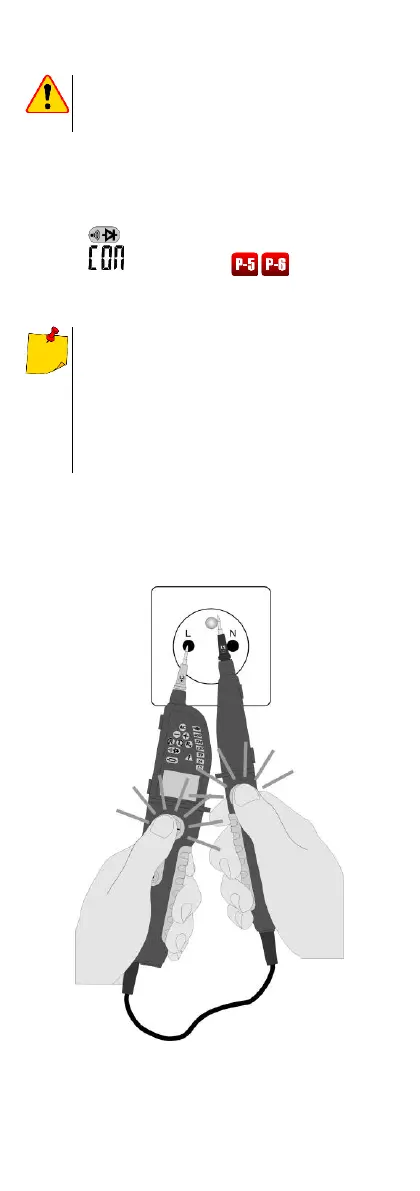

3.5 Circuit continuity test / diode test
CAUTION!
The tested object must not be energized.
Connect both probes to the tested object.
Signalling continuity with a beep and active indica-
tor lights:
,
on the display
.
After disconnecting from the object, the tester
switches off after a few seconds.
The maximum resistance of the tested
object: 400 kΩ.
If the tester detects voltage ≥6 V, it
switches automatically to the voltage
measurement mode (sec. 3.3, 3.4).
When operating in this mode, the Auto
OFF function of the tester is inactive.
3.6 Measuring with the internal im-
pedance
The tester is provided with additional low imped-
ance, coupled with a vibrating motor.
