Sony 32CX52X - Screw and Hook Locations Diagram;Table

29
GB
Additional Information
SU-WL500, SU-WL100
For KDL-55/46/40/37/32EX72x,
KDL-46/40HX72x,
KDL-46/40/37/32EX52x,
KDL-46/40/32CX52x,
KDL-32EX42x
For KDL-26/24/22EX32x
~
• Attach the Mounting Hook using the four screws supplied with the Wall-Mount Bracket.
• When attaching the Table-Top Stand again, be sure to fasten the screws (previously removed) to the original
holes on the rear of the TV.

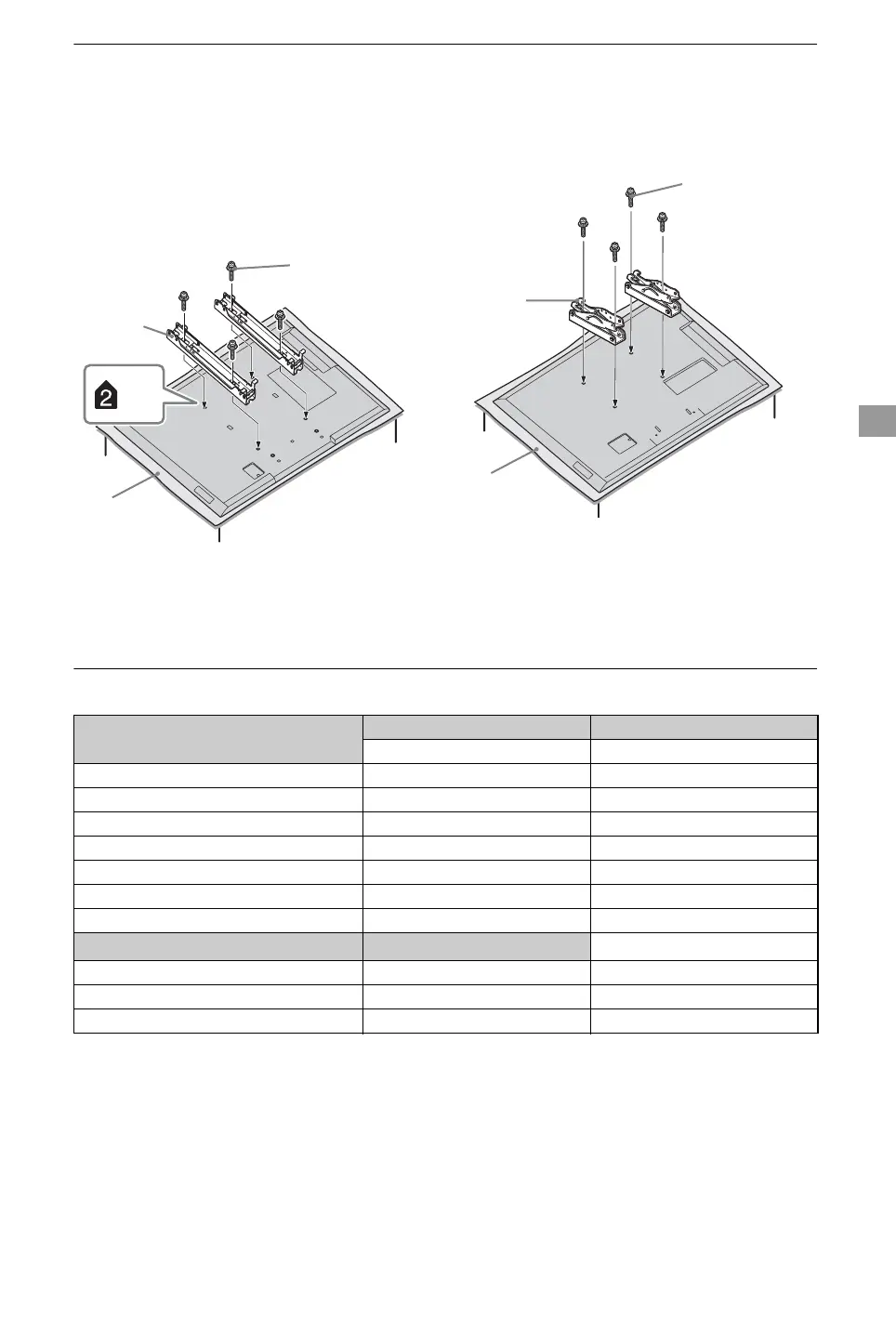

Screw and Hook locations diagram/table
SU-WL500
×
4
Mounting
Hook
Screw
(+PSW
6 × 16)
Soft cloth
Mounting
Hook
Screw
(+PSW
4 × 12)
SU-WL100
Soft cloth
Model Name
KDL-
Screw location Hook location
SU-WL500 SU-WL500
55EX72x e, j b
46HX72x/46EX72x/46EX52x e, j b
46CX52x d, g b
40HX72x/40EX72x/40EX52x e, j b
40CX52x d, g b
37EX72x/37EX52x e, j b
32EX72x/32EX52x/32EX42x/32CX52x e, g c
SU-WL100
26EX32x -a
24EX32x -a
22EX32x -b
(Continued)
