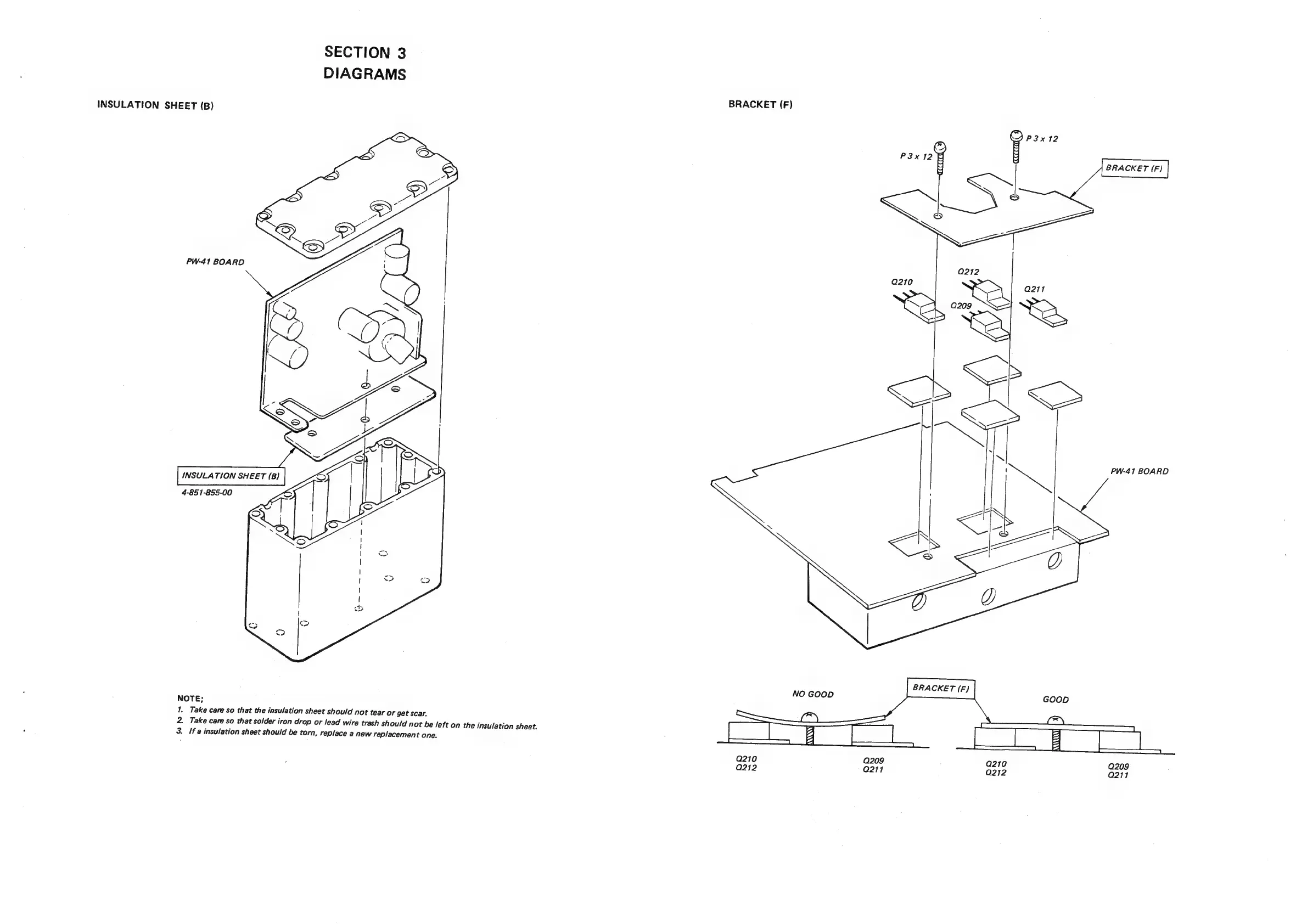

SECTION
3
DIAGRAMS
BRACKET (F)
INSULATION
SHEET
(B)
BRACKET (F}
P3x 12
P3x 12
WN
S
>)
ee
PW-41 BOARD
PW-41 BOARD
BRACKET (F)
NO GOOD
NOTE;
1.
Take
care
so
that
the
insulation
sheet
should
not
tear
or
get
scar.
2.
Take
care
so
that
solder
iron
drop
or
lead
wire
trash
should
not
be
left
on
the
insulation
sheet.
3.
Ifa
insulation
sheet
should
be
torn,
replace
a
new
replacement
one.
