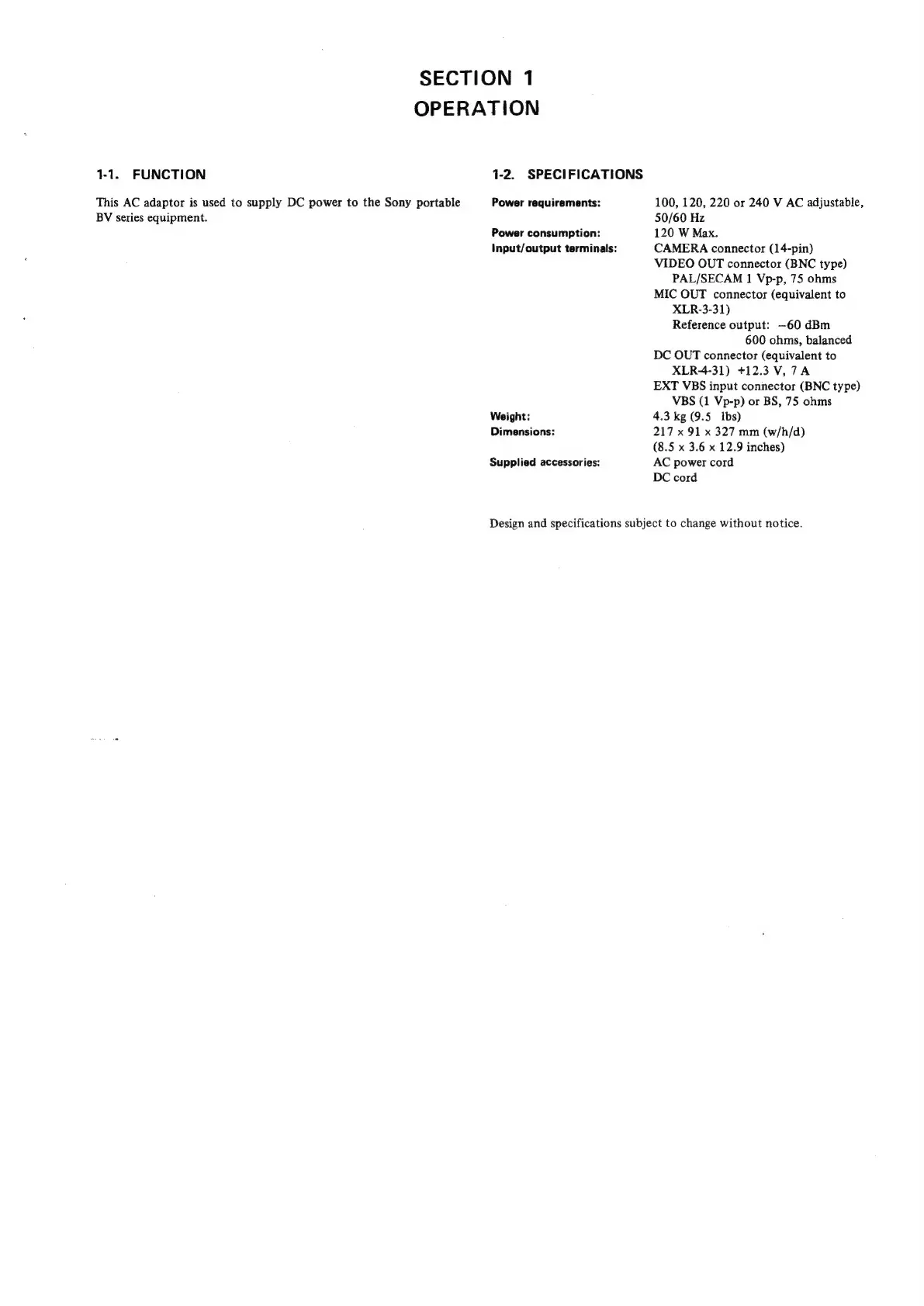

SECTION 1
OPERATION
1-1. FUNCTION
This AC adaptor is used to supply DC power to the Sony portable
BV series equipment.
1-2. SPECIFICATIONS
Power requirements:
Power consumption:
Input/output terminals:
Weight:
Dimensions:
Supplied accessories:
100, 120, 220 or 240 V AC adjustable,
50/60 Hz
120 W Max.
CAMERA connector (14-pin)
VIDEO OUT connector (BNC type)
PAL/SECAM 1 Vp-p, 75 ohms
MIC OUT connector (equivalent to
XLR-3-31)
Reference output: —60 dBm
600 ohms, balanced
DC OUT connector (equivalent to
XLR-~4-31) +12.3V,7A
EXT VBS input connector (BNC type)
VBS (1 Vp-p) or BS, 75 ohms
4.3 kg (9.5 Ibs)
217 x 91 x 327 mm (w/h/d)
(8.5 x 3.6 x 12.9 inches)
AC power cord
DC cord
Design and specifications subject to change without notice.
