1-23E
.5-1

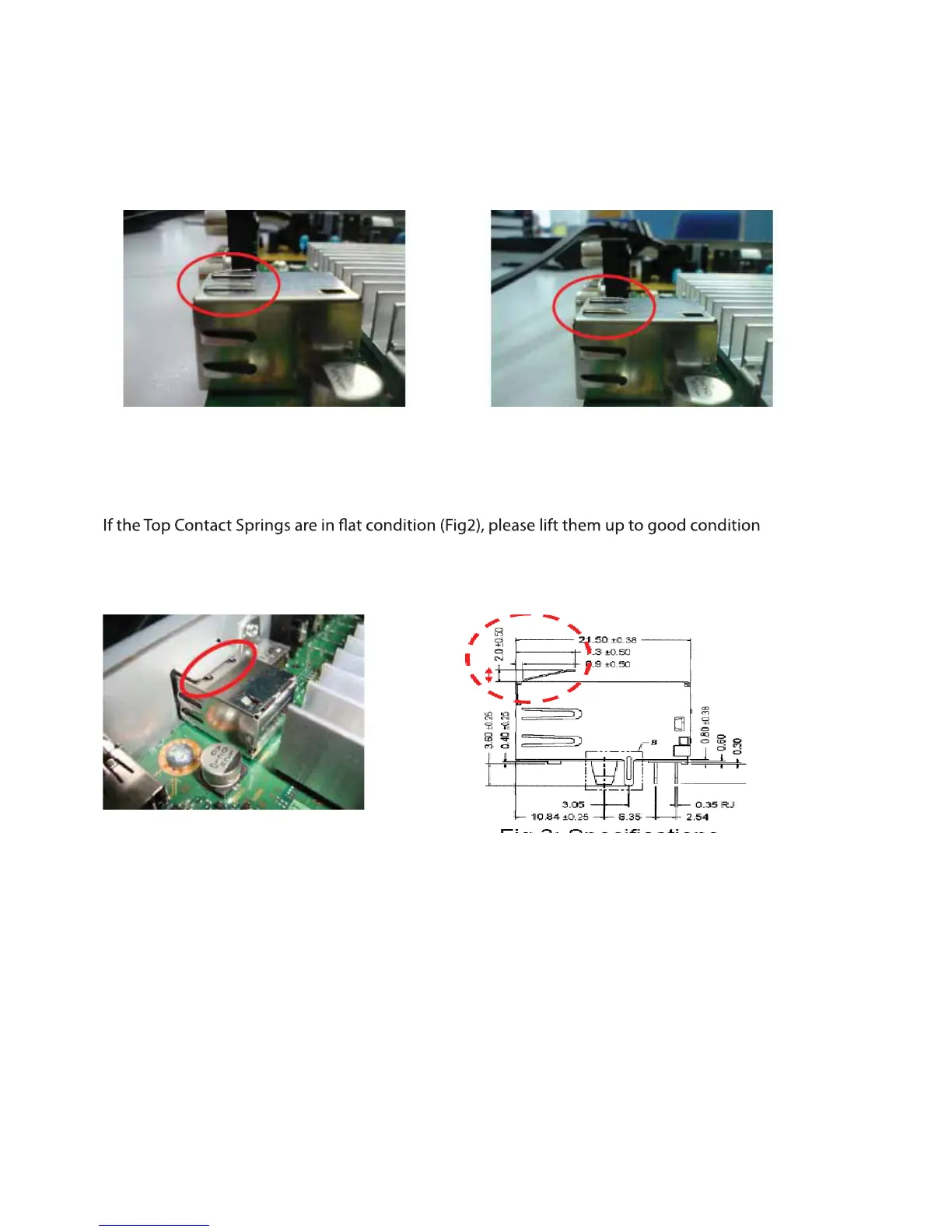

REAR PANEL ASSEMBLY CAUTION
Whenever you need to assemble the rear panel, please make sure that the Ethernet connector (CN801)
Top Contact Springs are in good condition with height ≥2.0mm ± 0.5mm (refer to Fig 1)
before assembling the rear panel.
Spec.
Fig.1
Good Contact
Fig.2
When assembling the rear panel, please ensure good contact
between the Top Contact Springs to the rear panel.
BDP-S485
To Next Page
