Sony BDP-S485 - 2 Disassembly; Disassembly Flow; Upper Case

2-1
BDP-S485
SECTION 2
DISASSEMBLY

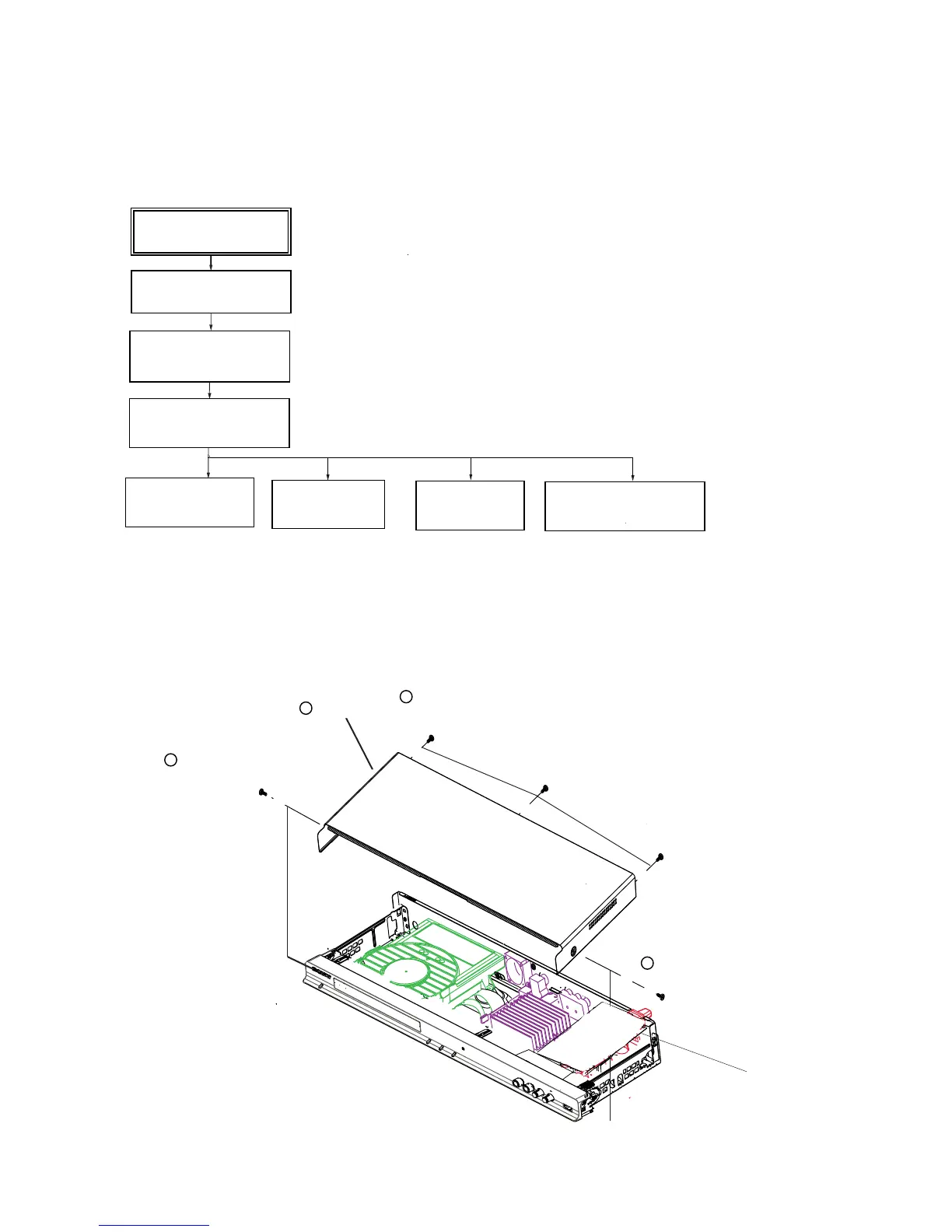

• This set can be disassembled in the order shown below.
Note: Follow the disassembly procedure in the numerical order given.
2-2. UPPER CASE
tapping screw
(tightening torque = 5 to 6 kgf•cm)
1 Tapping
screw
(tightening torque =5 to 6
kgf•cm)
2
Three tapping screws
(tightening torque =
5 to 6
kgf•cm)
3
2-1. DISASSEMBLY FLOW
2-2. UPPER CASE
(Page 2-1)
2-3. TRAY COVER ASSY
(Page 2-2)
2-8. SWITCHING REGULATOR
(Page 2-3)
2-7.
FRONT PANEL ASSY
(Page 2-4)
2-5. REAR PANEL
(Page 2-3)
2-6. MB-139 BOARD
(Page 2-5)
2-4.
BD DRIVE
MC-202 BOARD (Page 2-2)
SET
Upper case
FL-204, IF-172 boards &
1
