Sony BDP-S485 - MB-139 Board(MAIN Printed Wiring Board (Side A)

There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.

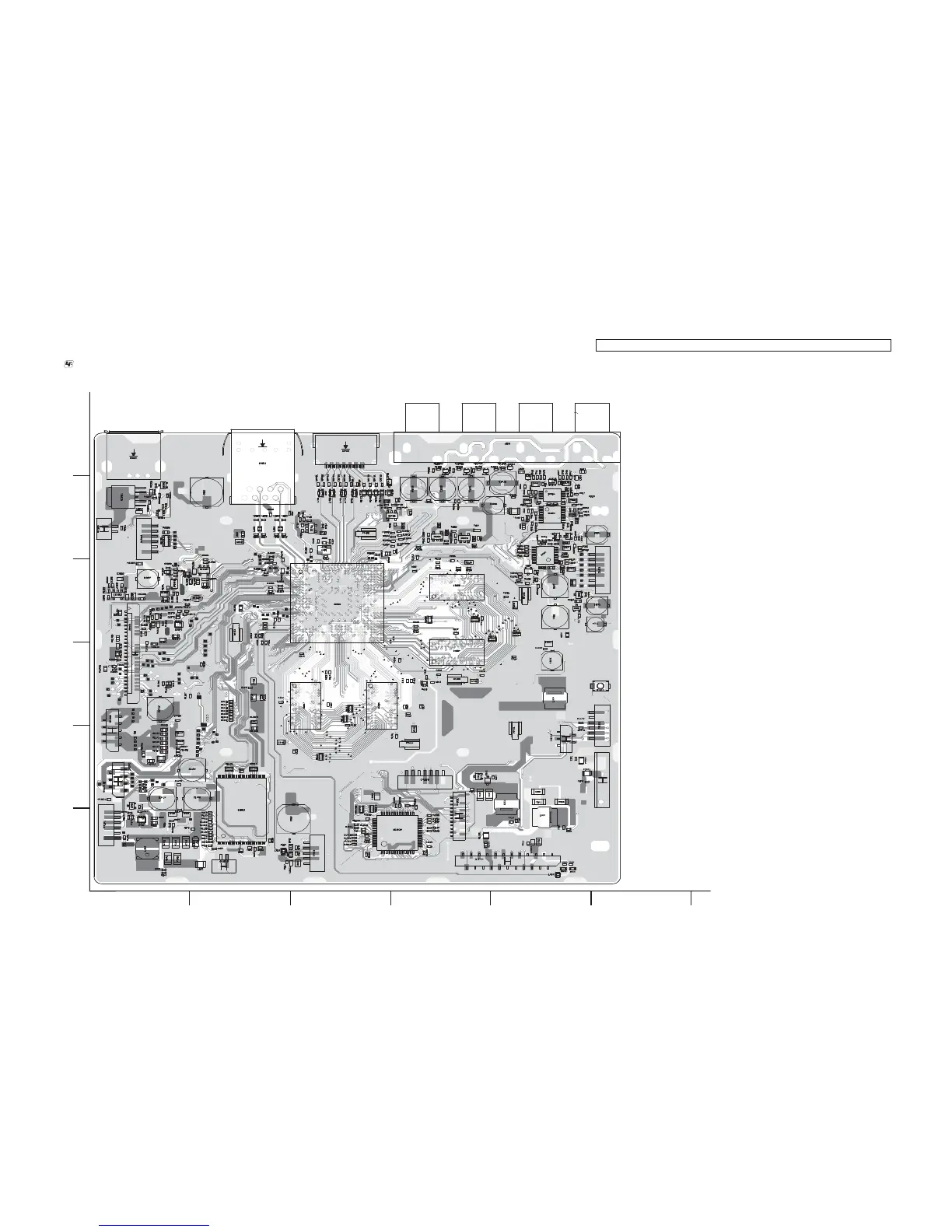

5-4. MB-139 BOARD (MAIN) PRINTED WIRING BOARD (SIDE A) • See page 2-5 for circuit boards location.
- Ref. No.: MB-139 board; 10,000 series -
BDP-S485
5-4
MB-139 BOARD (SIDE A)
CN1381
A-1
CN2470
B-1
CN1203
A-2
MB-139 BOARD
(SIDE A)
A
B
C
D
E
F
1
2
5
43
6
CN603
A-3
CN2490
B-1
CN2460
C-1
CN1204
A-4
CN1101
B-4
CN1202
B-4
CN1201
B-5
CN1102
B-6
CN1301
D-1
CN1391
E-1
CN1503
E-1
CN504
F-1
CN801
F-2
CN901
D-6
CN701
F-3
D606
A-3
D303
A-2
D608
A-5
D605
A-5
D1002
F-4
D1003
F-4
D1001
F-5
D902
F-5
D1004
F-4
D302
B-4
D701
E-3
IC501 A-2
IC1203
A-4
IC107
C-3
IC106
C-3
IC101
D-3
IC206
D-4
IC207
C-4
IC901
D-5
IC306
E-4
IC305
E-4
IC705 E-3
IC1381
D-2
IC1351
D-1
IC1501
E-1
IC903
E-5
IC904
E-5
IC704 E-3
Q303
B-1
Q302
A-1
Q902
D-5
Q910
D-5
Q912
D-5
Q913
E-5
Q914
E-5
Q1501
E-1
Q1502
E-1
Q1372
D-1
Q905
F-5
Q301
B-4
X401
E-3
