There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.

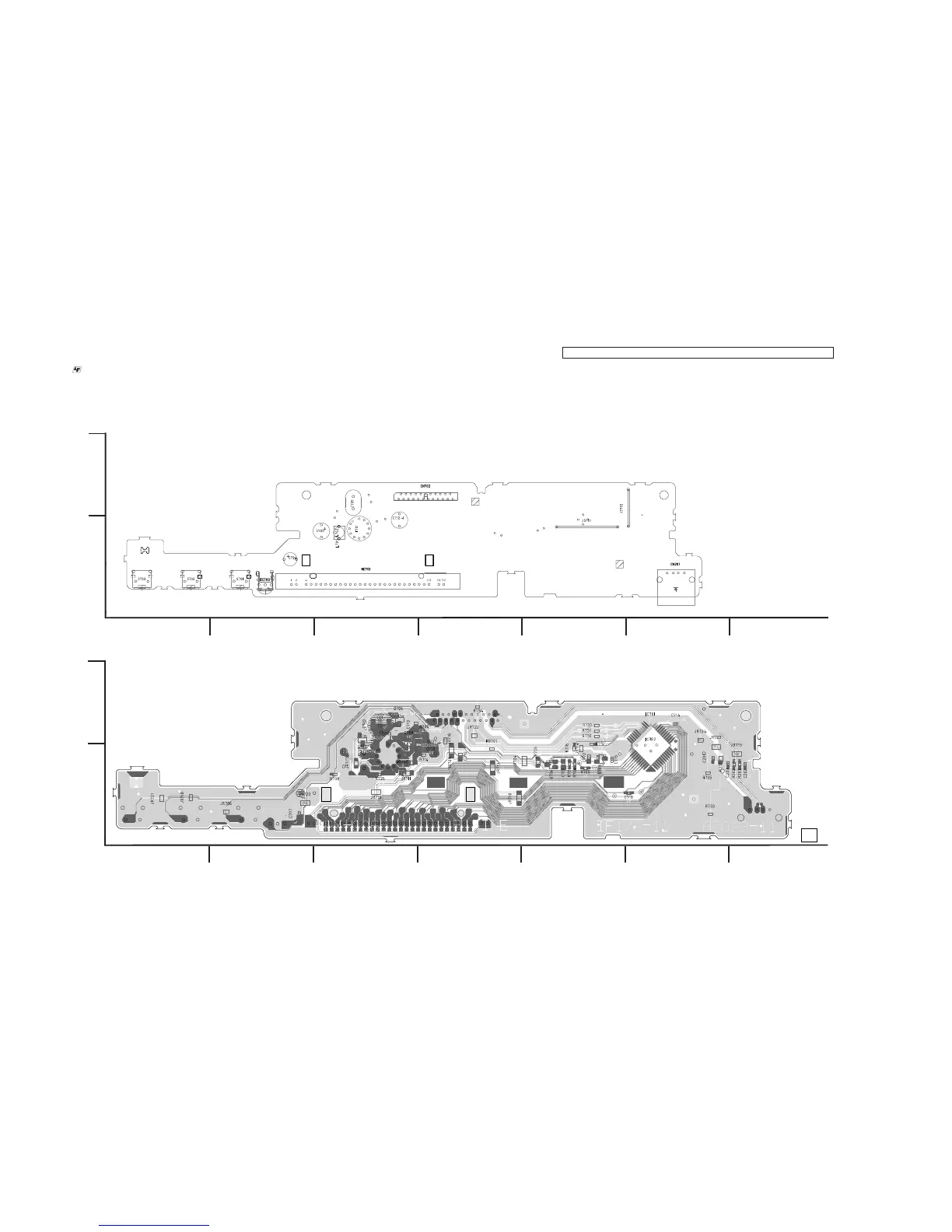

5-3. IF-172 BOARD (FRONT RIGHT) PRINTED WIRING BOARD (SIDE A) • See page 2-5 for circuit boards location.
- Ref. No.: IF-172 board; 20,000 series -
IF-172 BOARD (SIDE A)
CN702 2-A
IC703 2-A
5-3
CN201 6-A
1
2
5
43
7
6
A
B
IF-172 BOARD (SIDE B)
BDP-S485
IF-172 BOARD (SIDE A)
CN371 A-7
D702 A-1
D705 A-3
D706 A-3
D707 A-3
IC701 A-3
IC702 B-5
Q703 A-1
Q704 A-1
Q706 A-3
Q707 A-3
Q709 B-1
CN372 A-7
1
2
5
43
7
6
A
B
IF-172 BOARD (SIDE B)
11
1-882-034-
