There are a few cases that the part isn’t mounted in this model is printed on this diagram.
: Uses unleaded solder.
5-6. MC-202 (MIC) BOARD PRINTED WIRING B
OARD
- Ref. No.: MC-202 board; 20,000 series -
• See page 2-5 for circuit boards location.

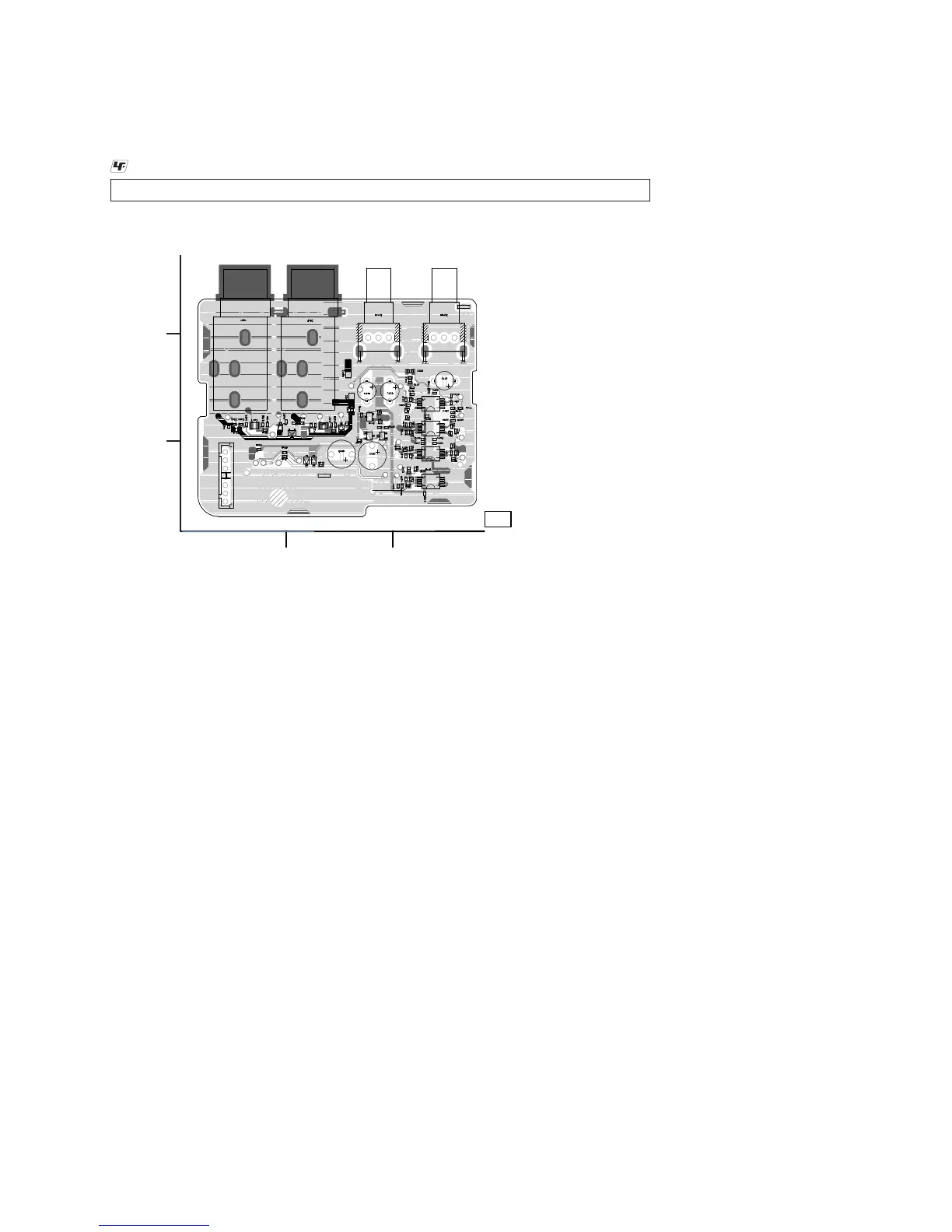

MC-202 BOARD (SIDE A)
CN401 A-1
MC-202 BOARD (SID
E A)
CN401
D405
D404
D403
D402
D401
IC404
IC403
IC402
IC401
Q402
Q401
Q403
MC-202
A
1
2
11
1-882-652-
AA
B
3
D401 B-1
D402 B-2
D404 A-2
D403 A-2
D405 A-2
IC401 B-3
IC402 B-3
IC404 A-3
IC403 A-3
Q401 B-2
Q402 B-2
Q403 B-2
