Getting Started
Connect the system so that video signals from the system and other equipment are output
to the TV, and audio signals from the equipment are output to the system as follows.
Select one of the following connection methods according to the jack type of the equipment.
• If you make either connection above, set [Control for HDMI] in [HDMI Settings] of [System Settings]
to [Off] (page 47).
• You can enjoy equipment sound by selecting the “AUDIO” function for connection B.

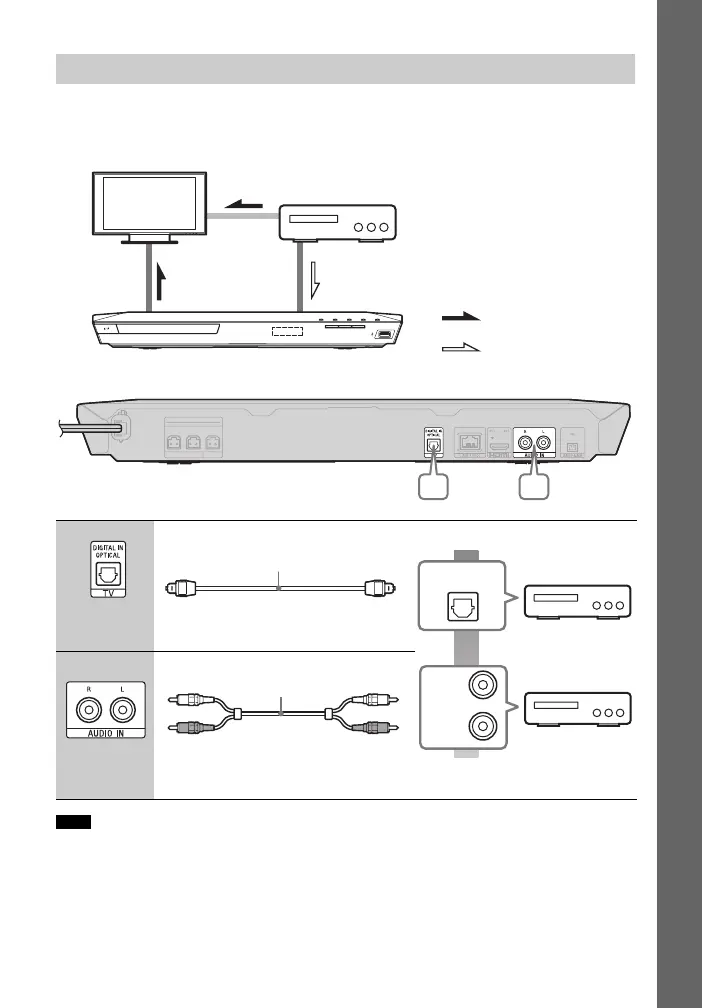

Connecting the other equipment (Set-top box, etc.)
A High quality
Standard
quality
B
Note
System
Signal flow
TV
: Audio signal
: Video signal
Equipment
(Set-top box, VCR, PlayStation
®
, or
digital satellite receiver, etc.)
Video out
Audio out
SPEAKERS
FRONT R FRONT L
SUBWOOFER
A B
Optical digital cord
(not supplied)
OPTICAL
DIGITAL OUT
L
R
AUDIO
OUTPUT
Audio cable (not supplied)
